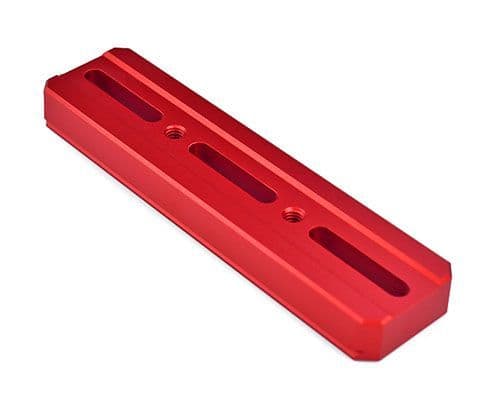

Altair 150mm Dovetail Bar - Dual Vixen Arca

The Altair Dual Vixen Arca dovetail plate is 150mm length, and includes two profiles in one, compatible with the Altair Quick Release Vixen / Arca clamps.

Two 1/4-20 threaded holes let you attach most cameras, camera lenses, and small scopes on a Vixen style mount or Arca Swiss clamp.

A grooved top profile allows you to mount Altair guide scope rings using a single hole, without twisting.

The two centreline slots are M6 and 1/4-20 compatible, with recesses to stop interference when mounted on flat surfaces.

Made from anodised CNC machined aluminium.

The Vixen-angled profile is 40.8mm width at widest point, and the Arca Swiss angle profile is 37.9mm width at widest point.
