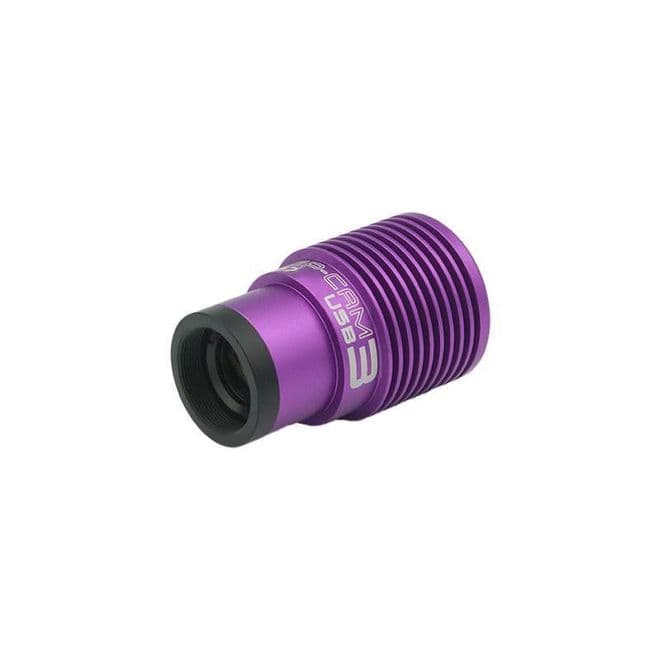

Altair 462M Mono USB3 Camera

Product code: ALTAIR462M
in stock
£235.00 UK Price
£195.83 (ex. VAT) International Price
PayPal Checkout
You will earn 235 loyalty points with this purchase

Product information

The Altair GPCAM3 462M Mono camera has the highest NIR sensitivity of any planetary camera in the range, as well as extremely high sensitivity at 500nm green wavelengths.

This makes it an extremely capable planetary imaging, guiding or deep-sky video astronomy camera. In particular, the high red sensitivity benefits both Hydrogen Alpha solar and deep-sky imaging, reducing exposure duration. This camera opens up new opportunities for imaging the giants, which display high contrast in the far red wavelengths, with strong absorption lines in the Methane Bands. For auto-guiding, the camera has unparalleled sensitivity, especially for guiding in the far red region, which is useful to the combat atmospheric seeing effects that affect guiding.

The full well capacity, high dynamic range, high sensitivity, and low readout noise are characteristic of the latest Starvis BSI CMOS sensor technology.

Feature summary Altair 462M:

  • 1920 x 1080 Resolution
  • 2.9 um Square Pixels
  • 1/2.8-inch sensor format
  • 5.57mm x 3.13mm sensor size
  • Low Read Noise: 0.49 to 2.1e-
  • High Frame Rate 152 FPS 8 bit
  • 12-bit ADC
  • Binning from 1x1 to 8x8 in either stacking or averaging modes.

Speed and reliability: USB3.0 format is fast yet stable, and a 512mb DDR3 Memory buffer enables faster more consistent frame rates.
Included software: The well featured intuitive AltairCapture software is included in a CD ROM, and can also be downloaded from AltairCapture is a stable 64 bit Windows application, which allows full control of the camera in high speed video or still mode. It includes extensive automation features, and supports all the major file formats useful for astro imaging and professional scientific imaging in 14bit or 8bit mode.

SPECIAL OFFER! FREE 1 YEAR SharpCap PRO License included with all Altair GPCAM3 Cameras!

Furthermore, the popular PHD Guiding, SharpCap PRO , APT and NINA are also natively supported. ASCOM drivers are also available for download at where you can also get regular updates. The installation process is easy, and unlike with cheaper cameras, you don't need to be a computer expert to make your camera work. Just install the software on the CDROM, plug in the camera, and that's it.

Wide USB compatibility: Although the GPCAM3 is a USB3.0 camera, it's also fully compatible with USB2.0 ports when a longer cable and less speed are required, for example in deep-sky or video astronomy using the live stacking features in AltairCapture or Sharpcap.
Autoguiding: The camera has an ST4 auto-guiding port, and can be used to auto-guide with mounts from all the major manufacturers supporting ST4 format, including iOptron, Celestron and Skywatcher. The sensor is more than sensitive enough for autoguiding.
Support & warranty: Altair delivers proper on-shore English-speaking UK & EU support with a 2 year manufacturer warranty against defects in materials and workmanship. New users should check out the Altair Astro Facebook Group where you can get answers to technical questions, as well as sharing tips and techniques. AltairCapture software interface supports most European languages including English, German, French, Indonesian, Japanese, Korean, Polish, Russian, Chinese, Spanish, Thai, and Turkish.
File formats: The camera can be fully controlled in AltairCapture and SharpCap to output uncompressed .AVI and .SER video files for solar system imaging, as well as all common still image formats such as .JPEG .PNG .TIFF .BMP, and .FITS (for deepsky imaging) to mention just a few. Common astronomy file format information here.


Sony IMX462 back illuminated sensor


6.39 mm

Image Resolution

2.1 mega pixels (3840*2160)

Pixel Size

2.9mm ´ 2.9mm

Image Area

5.57mm ´ 3.13mm

Max FPS at Resolution (USB 3.0)



76.1 FPS @ 1920*1080

152 FPS @ 1920*1080

Max FPS at Resolution (USB 2.0)



7.3 FPS @ @ 1920*1080

15.6 FPS @ 1920*1080

Shutter Type

Rolling shutter

Exposure Time

0.1ms – 1000s


1x – 150x


41 dB

Dynamic Range

75 dB

Read Noise

2.1 – 0.49 e-

QE Peak


Full Well




DDR3 Buffer

512MB (4Gb)

USB Compatibility


Camera Adaptor

Standard 1.25’’ for telescope connection, and standard C adapter for industrial lens

Front Optical Window

Anti Reflection Coated

Spectral Range


Capture/Control SDK

Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc.); (Contact us for SDK).

Recording System

Single frame sequences, snapshot or video

Camera Dimensions

Diameter 37mm * height 72.4mm

Camera Weight

70 grams

Back Focus Distance

17.5mm with C adapter, 12.5 with CS adapter


Passive cooling

Supported OS (AltairCapture software).

Microsoft® Windows® 8, 10 & 11 (32 & 64 bit)

OSx(Mac OS X)


Included in the box:

  • Camera body.
  • 1.5m USB cable.
  • 1.5m ST4 guide cable.
  • 1.25 inch x nosepiece with female 1.25" Astronomy filter thread on the front.
  • (Optional 2" OD Nosepiece with dual 2 and 1.25" filter threads is available, code GPCAM-2IN)
  • CS-Mount insert (12.5mm back-focus) is pre-installed on camera. (Optional 5mm extension adapter is available for C-Mount lenses requiring 17.5mm back-focus.)
  • UV-IR Blocking or Clear AR Coated Front optical glass filter with Anti-Reflection coatings. (Removable for sensor cleaning or swappable).
  • Plastic dust cap 1.25".
  • Silicon dust cap for sensor.
  • Software CD (Instructions online at )

Camera Back-focus & Adapter compatibility:

  • Cover glass is removable for cleaning and can be swapped with a clear or UV/IR blocking glass as required. Choose Product code: OW-GP-UVIR or Product code: OW-GP-CLEAR.
  • CS-mount lens compatibility: C-Mount male threaded lens with 12.5mm back-focus (or flange-distance) requirement.
  • C-mount lens adapter 5mm extension: Optional
  • C-mount lens compatibility: C-Mount male threaded lens with 17.5mm back-focus (or flange-distance) requirement.
  • Astro filter thread adapter: Included, 1.25" OD and 2 OD (optional), Female thread
  • Sensor surface distance from flat end of CS-mount adapter: 12.5 mm
  • Sensor surface distance from flat end of 1.25" / M42 Astro adapter: 37 mm

Windows PC Hardware Requirements:

  • Minimum PC: Equal to Intel i3 4GB+ RAM Windows 10 OS with separate graphics card.
  • Recommended PC: ( 2013+ i5 4GB RAM Intel 1.0x USB Host Controller preferable with separate graphics)
  • USB port compatibility: USB2.0 High-speed Port or USB3.0 High-speed Port
  • (computers manufactured in 2013 or later give best USB speed).
  • Monitor Display: 17" or Larger recommended.
  • Software updates: Downloaded online at

Software & Operating System compatibility:

  • Drivers & AltairCapture Windows software download: (opens new window).
  • Camera direct support: ASCOM, PHD2, AltairCapture, SharpCap, NINA, APT, Firecapture.
  • AltairCapture OS support: Win 11, Win 10
  • NOTE: Windows 10 is recommended for best USB performance, with 2013 or later USB host controller v1.0 or later.
  • SharpCap (a 3rd party application) is also fully supported and tested with native drivers.
  • USB Port & Cable: 3.0 USB Cable, 1.5m cable (USB2.0 also supported at low frame rates).
  • ST4 Port & Cable: Standard ST4 Opto-Isolated, 1.5m cable, iOptron, Celestron, Skywatcher SynScan GOTO.
  • Camera Quick Start & AltairCapture instructions online at

Optional Accessories:

  • 2 inch x 22mm nosepiece with dual 1.25" and 2 filter thread, code GPCAM-2IN. See associated products.
  • C-Mount 5mm extension adapter for C-Mount lenses requiring 17.5mm back-focus.
  • Spare Clear AR coated or UVIR coated optical windows available as spares.
  • Altair Astro Premium 1.25" CLS-CCD Filter with UV/IR Block & AR Coating (Code: F125CLSCCD) for imaging emission nebulae in light polluted urban environments.
  • Altair Astro Premium 2" CLS-CCD Filter with UV/IR Block & AR Coating (Code: F200CLSCCD) for imaging emission nebulae in light polluted urban environments.

Operating environment conditions:

  • Max operating temp: 50 °C
  • Lowest operating temp: -10 °C
  • Max operating humidity: 80 % RH
  • Power source in Volts: 5V DC (via USB cable)

Camera Quick Start & AltairCapture instructions online at
Worldwide Warranty: 2 years manufacturer warranty against defects in materials and workmanship. Return to point of purchase. Warranty is not transferable.
Availability: If out of stock, click the "Notify when in stock" button above to receive an email when product is ready to ship.
Note: Altair Astro and resellers reserve the right to change the product specification and/or price at any time without notice.
