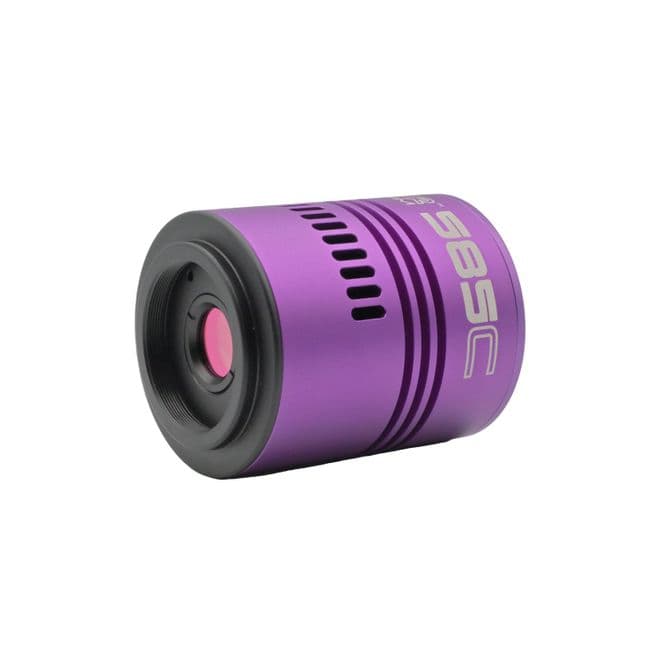

Altair Hypercam 585C Colour Fan Cooled USB3 Astronomy Camera

Product code: ALTAIR585C
in stock
[value]
£359.00 UK Price
£299.17 (ex. VAT) International Price
PayPal Checkout
You will earn 359 loyalty points with this purchase

Product information

The Altair 585C camera is ideal for astro imagers who want both solar system and deep-sky imaging.

The Altair 585C Colour camera has the latest Starvis 2 BSI sensor, with a high frame rate, no amp glow and very high sensitivity. Quantum Efficiency is about 91%!

The sensor has a 12.84mmm diagonal and 2.9um pixels, and is therefore well-suited for deep-sky imaging with a wide field refractor such as the Altair 60EDF, which has a 288mm focal length with it's F4.8 reducer.

Feature summary Altair 585C CMOS Camera:

On board temperature sensor for easier dark frame calibration.
Fan cooling with heatsink for extra low noise (powered by USB cable).
IMX585 Colour 8.3mp Starvis 2 Back Illuminated CMOS Sensor
On-chip HGC, LCG and HDR Support
3840 x 2160 pixel resolution
2.9 um Square Pixels
1/1.2-inch Optical Format
Sensor size: 11.14 x 6.26 mm (12.85mm Diagonal)
12-bit ADC (with 16bit output in HDR mode)
512Mbyte DDR3 Memory buffer
Low Noise: 0.65 to 0.5e- in HCG mode
Fast Frame Rate 47 FPS in 8bit mode
Binning from 1x1 to 8x8 in either stacking or averaging modes.

Speed and reliability: USB3.0 format is fast yet stable, and a 512mb DDR3 Memory buffer enables faster more consistent frame rates.

Included software: The well featured intuitive AltairCapture software is included in a CD ROM, and can also be downloaded from www.altairastro.help. AltairCapture is a stable 64 bit Windows application, which allows full control of the camera in high speed video or still mode. It includes extensive automation features, and supports all the major file formats useful for astro imaging and professional scientific imaging in 14bit or 8bit mode.

SPECIAL OFFER! FREE 1 YEAR SharpCap PRO License included with all Altair GPCAM3 Cameras!

Furthermore, the popular PHD Guiding, SharpCap PRO, APT and NINA are also natively supported. ASCOM drivers are also available for download at www.altairastro.help where you can also get regular updates. The installation process is easy, and unlike with cheaper cameras, you don't need to be a computer expert to make your camera work. Just install the software on the CDROM, plug in the camera, and that's it.

Wide USB compatibility: Although the GPCAM3 is a USB3.0 camera, it's also fully compatible with USB2.0 ports when a longer cable and less speed are required, for example in deep-sky or video astronomy using the live stacking features in AltairCapture or Sharpcap.

Autoguiding: The camera has an ST4 auto-guiding port, and can be used to auto-guide with mounts from all the major manufacturers supporting ST4 format, including iOptron, Celestron and Skywatcher. The sensor is more than sensitive enough for autoguiding.

Support & warranty: Altair delivers proper on-shore English-speaking UK & EU support with a 2 year manufacturer warranty against defects in materials and workmanship. New users should check out the Altair Astro Facebook Group where you can get answers to technical questions, as well as sharing tips and techniques. AltairCapture software interface supports most European languages including English, German, French, Indonesian, Japanese, Korean, Polish, Chinese, Spanish, Thai, and Turkish.

File formats: The camera can be fully controlled in AltairCapture and SharpCap to output uncompressed .AVI and .SER video files for solar system imaging, as well as all common still image formats such as .JPEG .PNG .TIFF .BMP, and of course fully compliant .FITS (for deepsky imaging) to mention just a few. Common astronomy file format information here.

Altair 678 Camera Technical Specification:

Sensor

IMX585 Colour 8.3mp Starvis 2 BSI CMOS Sensor

Diagonal

12.85mm

Image Resolution

8.3 mega pixels (3840*2160)

Pixel Size

2.9mm ´ 2.9mm

Image Area

11.14 x 6.26 mm

Max FPS at Resolution (USB 3.0) without ROI.
(NOTE: Average figures still being tested).

12bit

8bit

23.4 FPS @ 3840*2160

68.1 FPS @ 1920*1080

47 FPS @ 3840*2160

71.4 FPS @ 1920*1080

Max FPS at Resolution (USB 2.0)

12bit

8bit

2.5 FPS @ 3840*2160

7.9 FPS @ 1920*1080

4.8 FPS @ 3840*2160

7.9 FPS @ 1920*1080

Shutter Type

Rolling shutter

Exposure Time

0.1ms – 1000s

Gain

1x – 150x

SNR

46 dB

Dynamic Range

74 dB

Read Noise

2.43 – 0.42 e-

QE Peak

>91%

Full Well

40ke-

ADC

12bit

DDR3 Buffer

512MB (4Gb)

Connection Port

USB3.0/USB2.0

Camera Adaptor(s)

Standard 2’’ for telescope connection with standard C adapter for Altair Allsky lens. Optional 1.25" nosepiece ordered separately.

Front Optical Window

 UVIR Blocking optical window with AR coating

Spectral Range

380-690nm (UVIR Blocking optical window with AR coating)

Capture/Control SDK

Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc.);

Recording System

Still picture and movie

Camera Dimensions

Diameter 65mm x length 80mm

Camera Weight

300g

Back Focus Distance

17.5mm with C adapter, 12.5mm with CS Allsky Lens adapter

Cooling:

Fan or passive cooling (toggled in software).

Supported OS

Microsoft® Windows® 10 / 11

OSx(Mac OS X)

Linux

Included in the box:

  • Camera body.
  • 1.5m USB cable.
  • 1.5m ST4 guide cable.
  • 2" OD Nosepiece with 2" filter thread code included.
  • Optional 1.25 inch x nosepiece with female 1.25" Astronomy filter thread.
  • CS-Mount insert (12.5mm back-focus) included
  • Silicon dust cap for sensor.
  • Software CD (Instructions online at www.altairastro.help )

Camera Back-focus & Adapter compatibility:

  • Cover glass is removable for cleaning and can be swapped with a clear or UV/IR blocking glass as required. Choose Product code: OW-GP-UVIR or Product code: OW-GP-CLEAR.
  • CS-mount lens compatibility: C-Mount male threaded lens with 12.5mm back-focus (or flange-distance) requirement.
  • C-mount lens adapter 5mm extension: Optional
  • C-mount lens compatibility: C-Mount male threaded lens with 17.5mm back-focus (or flange-distance) requirement.
  • Astro filter thread adapter: Included, 1.25" OD and 2 OD (optional), Female thread
  • Sensor surface distance from flat end of CS-mount adapter: 12.5 mm
  • Sensor surface distance from flat end of 1.25" / M42 Astro adapter: 37 mm

Windows PC Hardware Requirements:

  • Minimum PC: Equal to Intel i3 4GB+ RAM Windows 10 OS with separate graphics card.
  • Recommended PC: ( 2013+ i5 4GB RAM Intel 1.0x USB Host Controller preferable with separate graphics)
  • USB port compatibility: USB2.0 High-speed Port or USB3.0 High-speed Port
  • (computers manufactured in 2013 or later give best USB speed).
  • Monitor Display: 17" or Larger recommended.
  • Software updates: Downloaded online at www.altairastro.help

Software & Operating System compatibility:

  • Drivers & AltairCapture Windows software download: www.altairastro.help (opens new window).
  • Camera direct support: ASCOM, PHD2, AltairCapture, SharpCap, NINA, APT, Firecapture.
  • AltairCapture OS support: Win 11, Win 10
  • NOTE: Windows 10 is recommended for best USB performance, with 2013 or later USB host controller v1.0 or later.
  • SharpCap (a 3rd party application) is also fully supported and tested with native drivers.
  • USB Port & Cable: 3.0 USB Cable, 1.5m cable (USB2.0 also supported at low frame rates).
  • ST4 Port & Cable: Standard ST4 Opto-Isolated, 1.5m cable, iOptron, Celestron, Skywatcher SynScan GOTO.
  • Camera Quick Start & AltairCapture instructions online at www.altairastro.help

Optional Accessories:

  • 2 inch x 22mm nosepiece with dual 1.25" and 2 filter thread, code GPCAM-2IN. See associated products.
  • C-Mount 5mm extension adapter for C-Mount lenses requiring 17.5mm back-focus.
  • Spare Clear AR coated or UVIR coated optical windows available as spares.
  • Altair Astro Premium 1.25" CLS-CCD Filter with UV/IR Block & AR Coating (Code: F125CLSCCD) for imaging emission nebulae in light polluted urban environments.
  • Altair Astro Premium 2" CLS-CCD Filter with UV/IR Block & AR Coating (Code: F200CLSCCD) for imaging emission nebulae in light polluted urban environments.

Operating environment conditions:

  • Max operating temp: 50 °C
  • Lowest operating temp: -10 °C
  • Max operating humidity: 80 % RH
  • Power source in Volts: 5V DC (via USB cable)

Camera Quick Start & AltairCapture instructions online at www.altairastro.help

Worldwide Warranty: 2 years manufacturer warranty against defects in materials and workmanship. Return to point of purchase. Warranty is not transferable.

Availability: If out of stock, click the "Notify when in stock" button above to receive an email when product is ready to ship.

Note: Altair Astro and resellers reserve the right to change the product specification and/or price at any time without notice.
