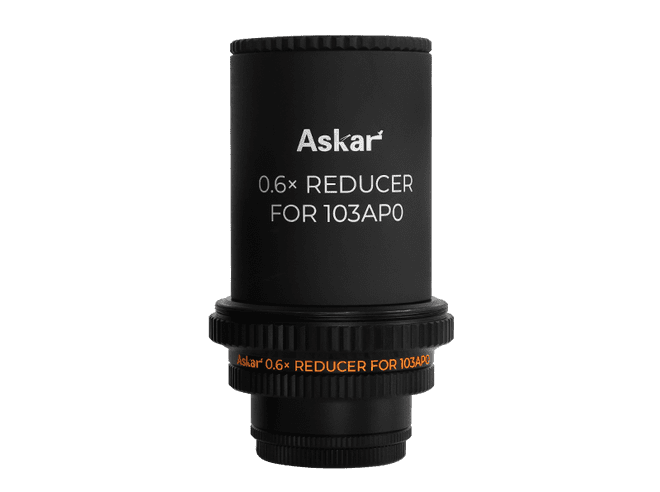

Askar 0.6x Full Frame Reducer for 103 APO

Product code: ASKAR-RED103APO06
in stock
[value]
£298.00 UK Price
£248.33 (ex. VAT) International Price
PayPal Checkout
You will earn 298 loyalty points with this purchase

Product information

The 0.6x reducer can bring the Askar 103APO's focal ratio down to F4 while also providing field flattening. Askar 103APO adopts a detachable tube design, where the rear part of the tube can be removed when using the 0.6x reducer, allowing the telescope to have the necessary length to achieve an F4 focal ratio.

The 0.6x reducer adopts a quadruplet design that also supports a 44mm full-frame image circle. The overall weight is 0.98kg. The back focus from the M48 thread is a standard 55mm. The front thread is M84*1. At the camera end, we have equipped three sizes of adapter, M68*1, M54*0.75, and M48*0.75 for easy subsequent connection and use. At the same time, the built-in M48*0.75 2-inch filter thread can be used to install filters directly. The overall CNC machined, both end threaded metal caps prevent ash when not in use.

Specifications

0.6x Reducer Parameters

(After attaching)103APO Focal length

420.24mm

(After attaching)103APO Focal ratio

f/4.08

Lens Number

Quadruplet Design

Back Focus

55mm(from the base of M48 male thread)

weight

0.98kg

Rear-end thread type

M68×1
M68×1-M54×0.75
M54×0.75-M48×0.75 (M48×0.75 filter thread inside)

0.6x Reducer Size Diagram

0.6x Reducer Installation

Spot Diagram

Product Info

Brand ASKAR
Product Code ASKAR-RED103APO06
Delivery Weight Package
1kg
