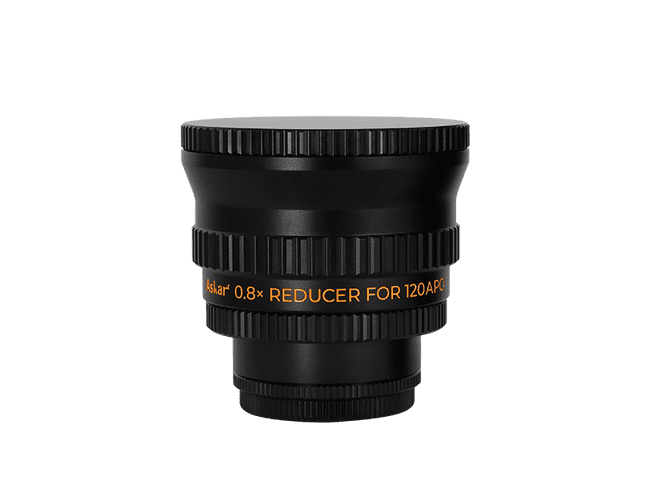

Askar 0.8x Full Frame Reducer for 120APO

Product code: ASKAR-RED120APO
in stock
[value]
£209.00 UK Price
£174.17 (ex. VAT) International Price
PayPal Checkout
You will earn 209 loyalty points with this purchase

Product information

The 0.8x reducer can bring Askar 120APO's focal ratio down to F5.6. This is a standard reducer with field flattening capabilities as well. A shorter focal ratio allows the OTA to have a wider field of view and faster exposure times, making it suitable for capturing large areas of nebulae, star clusters, and faint, fast-moving celestial objects.

The 0.8x reducer adopts a triplet design and supports a 44mm full-frame image circle. The overall weight is 0.75kg. The back focus from the M48 thread is a standard 55mm. The front thread is M84*1. we have equipped three sizes of adapter, M68*1, M54*0.75, and M48*0.75 for easy subsequent connection and use. At the same time, it has a built-in M48*0.75 2-inch filter thread, which can be directly installed and used. The overall CNC machined, both end threaded metal caps prevent ash when not in use.

Specifications

0.8x Reducer Parameters

(After attaching)120APO Focal length

672mm

(After attaching)120APO Focal ratio

f/5.6

Lens Number

Triplet design

Back Focus

55mm(from the base of M48 male thread)

Weight

0.75kg

Rear-end thread type

M68*1
M54×0.75
M54×0.75-M48×0.75 (M48×0.75 filter thread inside)

0.8x Reducer Size Diagram

0.8x Reducer Installation

Spot Diagram

Product Info

Brand ASKAR
Product Code ASKAR-RED120APO
Delivery Weight Package
1kg
