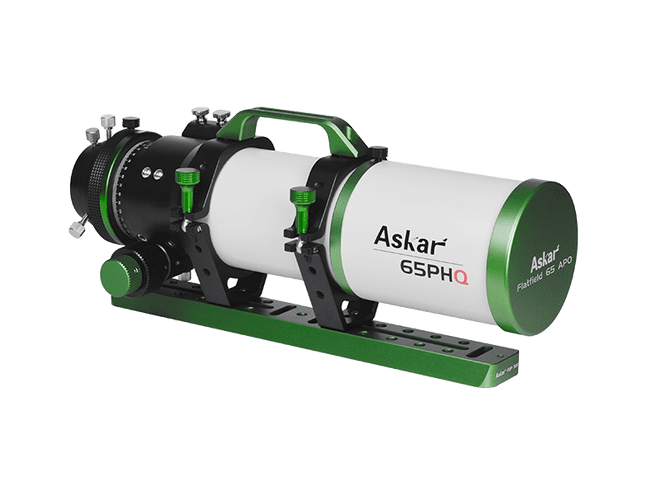

Askar 65 PHQ Quintuplet Flatfield Astrograph

Product code: ASKAR-65PHQ
in stock
[value]
£979.00 UK Price
£815.83 (ex. VAT) International Price
PayPal Checkout
You will earn 979 loyalty points with this purchase

Product information

65PHQ is a flatfield astrograph newly launched after 80PHQ, 107PHQ, and 130PHQ. Instead of buying extra flatteners, calculating the back focus of the flattener, or making a tedious connection to match the correct distance, astrophotographers can simply equip it with any possible imaging accessories, make the target stay at the focus, and then the whole optical system is perfect for imaging.


65PHQ has a smaller size than other PHQ astrographs. 65PHQ has a focal ratio of f/6.4 and a focal length of 416mm. Instead of the quadruplet structure of other PHQs, the 65PHQ is a quintuplet with two ED glasses which offers excellent control of chromatic and other aberrations. With its self-flattening design, 65PHQ offers strong advantages in the astronomical shooting. It supports the full-frame image circle and has a fine spot diagram with tiny distortions of the peripheral stars.

65PHQ comes with a telescopic lens hood, a high-quality CNC machined and painted tube, and attractive decorative parts. The OTA weighs 2kg, and the full package with tube rings, etc. weighs 2.8kg. The 2.5” rigid focuser comes with a new-type 360° rotator with scales and a finder base. M68, M54, and M48 camera adapters are also attached, and the M48 adapter has a 2” female thread for installing filters.


It is also a nice choice for your visual observation. It fits diagonals as well as various eyepieces and can achieve a perfect focus. It can even be used to observe planets with a super-high magnification eyepiece. The 65PHQ contains a multifunctional handle, a 300mm dovetail plate, and sturdy double tube rings. It is small in size and light in weight, which perfectly caters to your need for viewing and shooting.

Specifications

65PHQ Parameters

Aperture size

65mm

Focal length

416mm

Focal ratio

f/6.4

Objective lens

Quintuplet air-spaced APO (including two ED glasses)

Image circle

44mm

Maximum accessory connection (with the focuser fully retreated):

Imaging mode

85mm(from the base of M48×0.75 male thread)

114mm(from the base of M54×0.75 male thread)

139mm(from the base of M68×1 male thread)

Observing mode

121mm(from the end of 2" eyepiece holder)

Total length

328mm(including 1.25" eyepiece holder as dew shield contracted)

388mm(including 1.25" eyepiece holder as dew shield fully stretched)

360mm(including the 3-piece adapter as dew shield contracted)

420mm(including the 3-piece adapter as dew shield fully stretched)

OTA Weight

2kg

Total Weight (Including tube ring&dovetail plate)

2.8kg

Rear-end thread type

M68×1-M54×0.75

M54×0.75-M54×0.75

M54×0.75-M48×0.75 (M48×0.75 filter thread inside)

Rear end of the 3-piece photographic adapters

M48×0.75

Standard package items

A 65PHQ OTA, a pair of tube rings, a handle, Askar 300mm Vixen-style dovetail plate, a set of 3-piece photographic adapters, a manual

Product Info

Brand ASKAR
Product Code ASKAR-65PHQ
Delivery Weight Package
5kg
