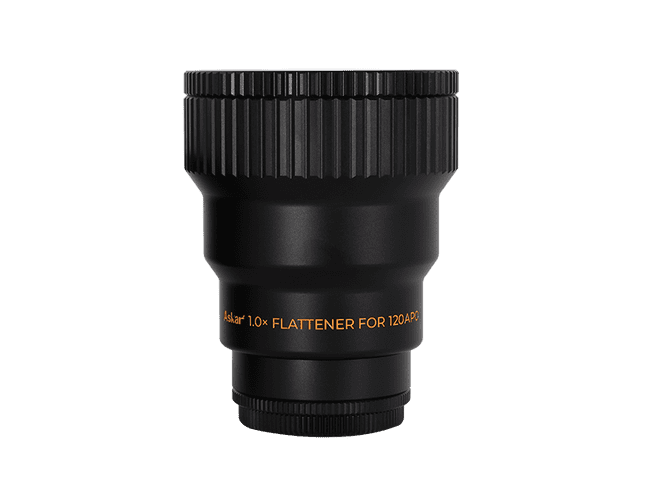

Askar Full Frame 1.0x Flattener for 120APO

Product code: ASKAR-FLAT120APO
in stock
[value]
£209.00 UK Price
£174.17 (ex. VAT) International Price
PayPal Checkout
You will earn 209 loyalty points with this purchase

Product information

The 1x flattener does not change the telescope's focal ratio itself. After connecting with the Askar 120APO, it still maintained a focal ratio of 7. The flattener corrects field curvature and coma, resulting in flatter field edges and finer star points.

The 1.0x flattener adopts a triplet design and supports a 44mm full-frame image circle. The overall weight is 0.75kg. The back focus from the M48 thread is a standard 55mm. The front thread is M84*1. At the camera end, it is equipped with M54*0.75 and M48*0.75 two sizes of adapters, which are convenient for connection. At the same time, it has a built-in M48*0.75 2-inch filter thread, which can be directly installed and used. The overall CNC machined, both end threaded metal caps prevent ash when not in use.

Specifications

1x Flattener Parameter

(After attaching)120APO Focal length

840mm

(After attaching)120APO Focal ratio

f/7

Lens Number

Triplet design

Back Focus

55mm(from the base of M48 male thread)

Weight

0.75kg

Rear-end thread type

M54×0.75
M54×0.75-M48×0.75(M48×0.75 filter thread inside)

1x Flattener Size Diagram

1x Flattener Installation

Spot Diagram

Product Info

Brand ASKAR
Product Code ASKAR-FLAT120APO
Delivery Weight Package
1kg
