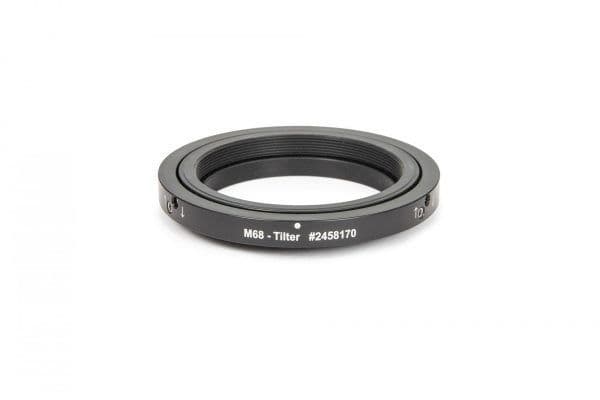

Baader M68 Tilter
- M68 tilter to produce an optimally flattened field of view
- Compatible with the entire M68 System
- Allows 0-1° tilt to compensate for misalignment in the image field
- 9.5 10.25 mm optical length
The Baader M68 Tilter is a new addition to the M68 Adaptor family. Its purpose is to allow easy adjustment of an imaging sensor in order to compensate for image plane tilt. The Tilters path length is 9.50mm when fully in and extends to 10.25mm when fully out with up to 1° of tilt compensation. The M68 Tilter can be used with all of the M68 system.
The image below shows the M68 Tilter in a configuration with Baader M68 extension tubes and their UFC Base Filter Chamber.
