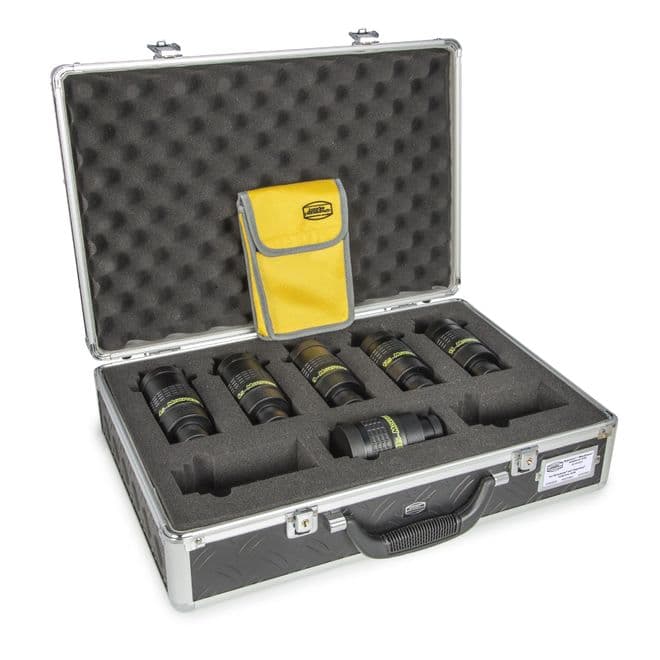

Baader Morpheus Eyepieces Set with Case - Six Eyepieces
Product code:
2954200
in stock
[value]
£1,249.00 UK Price
£1,040.83 (ex. VAT) International Price
You will earn 1249 loyalty points with this purchase
Product information
- Extended scope of supply: the Morpheus® 76° eyepiece set includes the Hyperion® / Morpheus® eyepiece case (#2454601) as well as the Baader Utility Bag for small accessories (#2954201)
- Full field sharpness: The sharp flat 76° field is unsurpassed by any other modern wide field eyepiece. On-axis sharpness and contrast rivals our best planetary eyepieces, while delivering nearly equivalent performance over the full field.
- Long Eye Relief and optimized for bino-viewing: Morpheus pushes the envelope of comfortable wide field viewing further than ever before, delivering close to 20mm of eye relief
- Low Distortion: The Morpheus optical design delivers exceedingly low distortion (angular magnification distortion)
- Photo-Video Adaption: Like their Hyperion siblings, all Morpheus eyepieces make superb imaging projection optics with the M43 thread
- NEW FEATURES SINCE JANUARY 2018:
Metal / Rubber eyecup: The folding rubber eyecup now comes with an integral M43 threaded metal ring (this accounts for the complete line of Morpheus-eyepieces). The threaded attachment enables the eyecup to stay soft and compliant, while keeping the eyecup securely attached to the eyepiece while folding it up or down.
M43/M43 extension: all Morpheus eyepieces now include the M43 extension #2954250. It is used for optimizing the position of the eyecup in setting the personal viewing position as well as for adapting a camera with M43-thread (eg. Sony / Panasonic). In addition this extension serves also as clamping surface for smartphone holders
10-page manual: a manual with many application examples and a list of optional accessories (similar to the Hyperion manual) is included (also under Tab "Downloads")
Focal-Length Indicator-Clips: these stainless steel clips can be attached e.g. to the eyepiece holster and one or more of the little indicator fingers is bent upward - according to the focal length used. In this way the user experiences a taktile ("braille"-equivalent) sensation, being able to identify each eyepiece without looking and without using a flashlight
-
GENERAL MANUFACTURER Baader Planetarium SKU (#) 2954200 EYEPIECE SERIES Morpheus SPECIFICATIONS FOCAL LENGTH 4,5 mm | 6,5 mm | 9 mm | 12,5 mm | 14 mm | 17,5 mm APPARENT FIELD OF VIEW 76° EYE RELIEF (MM) varies for each focal length AR-COATING Phantom Coating® Group PARFOCAL EYEPIECES Yes SPECIAL FEATURES Photo-luminescent engraving: lets you find the correct eyepiece at all times BARREL SIZE (IN) 1¼", 2" OPTICAL DESIGN Wide Angle SPECIALITY Eyepiece projection: classical EYEPIECE DESIGN FIELD STOP DIAMETER variiert je nach Brennweite FIELD STOP DISPLACEMENT TO REFERENCE PLANE +/- 0 mm NUMBER OF LENS ELEMENTS 8 NUMBER OF GROUPS 5 BACKFOCUS GAIN W. 2 BARREL (MM) 21 mm SLIP PROTECT SAFETY Safety Kerfs EYEPIECE BODY ABOVE REFERENCE PLANE (MM) varies for each focal length LENGTH OF 1¼" BARREL (MM) 24 mm LENGTH OF 2" BARREL (MM) 21 mm OUTER DIAMETER 55 mm CONNECTIONS OUTER CONNECTION (EYEPIECE/-CAMERA-SIDED) Thread, M43 INNER CONNECTION (LENS SIDED) Thread, M28,5 OUTER CONNECTION (LENS SIDED) Barrel, 1¼", 2" (50,8mm) CAMERA THREAD M43 THREADED FOR FILTERS Yes INCLUDED ITEMS DUSTCAPS 1¼" dustcap (31,8mm), 2" dustcap (46.5mm - fits over eyecup), 2" dustcap (49mm) EYECUPS rubber/metal, folding eyecup with M43 thread, winged eyecup (M43) INCLUDED ACCESSORIES Cordura eyepiece holster for fast access, Focallength Indicator-Clip, M43/M43 extension, Baader Utility Bag #2954201
Product Info
| EAN | 4047825034304 |
| GTIN | 4047825034304 |
| Brand | Baader |
| Product Code | 2954200 |
|
Delivery Weight Package
|
1kg |
