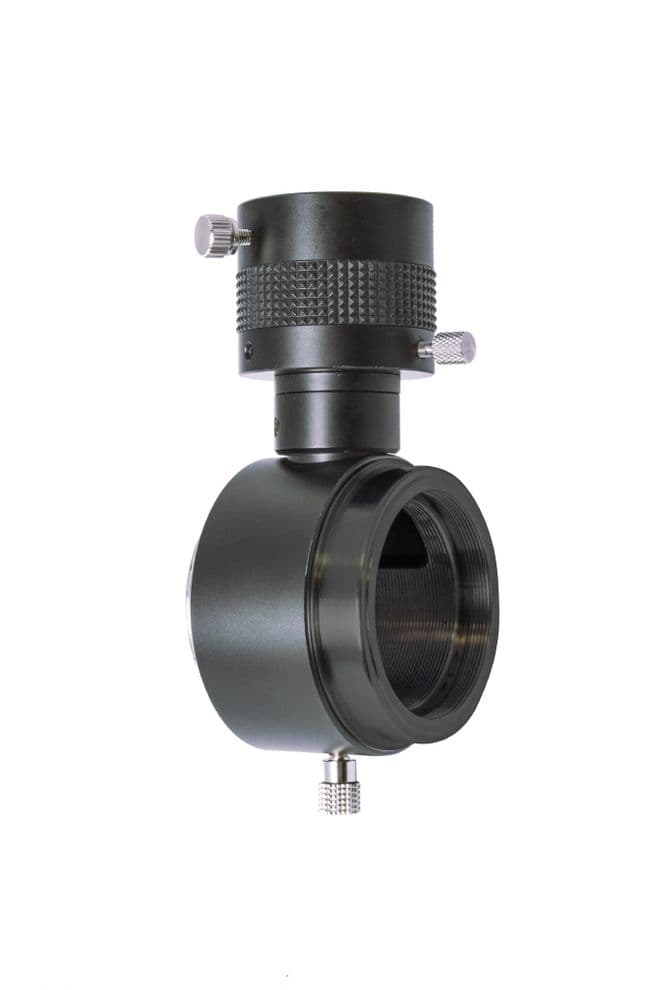

Baader Off Axis Guider for RCC Coma Corrector (RCC-OAG)

• 140° rotatable Off Axis Guider (OAG) to connect onto T-2 threads
• Specially created for the RCC I Newton Coma Corrector
• With this OAG, a Baader T-Ring and a crossaim eyepiece or guider you can guide every DSLR camera "Off axis" without additional rings or extentions
• The optical lightway is about 36mm

Off Axis Guider for RCC Coma Correktor (RCC-OAG)

Adjustable and tunable PickUp-Prism mit 1 1/4" Eyepiece holder. Note: this is the only prism that can be tuned to actively center a star on the guiding chi.

Technical information:

• Inner Connection (lens sided): T-2 (M 42 x 0,75 mm)
• Outer Connection (eyepiece/-camera-sided): T-2 (M 42 x 0,75 mm)
• Barrel Size (in): 1 1/4"
• Schwenkbereich: 140°
• Pivoting Range: 9.5 mm
• Optical length (mm): 36.5 mm

EAN CODE	4047825023506
MANUFACTURER	Baader Planetarium
SKU (#)	2956950
WEIGHT (NETTO)	0.218
INNER CONNECTION (LENS SIDED)	Thread, T-2 (M42 x 0,75)
OUTER CONNECTION (EYEPIECE/-CAMERA-SIDED)	Thread, T-2 (M42 x 0,75)
OPTICAL LENGTH (MM)	36,5
PIVOTING RANGE	140°
BARREL SIZE (IN)	1¼"
OPTICAL DESIGN	Guider
