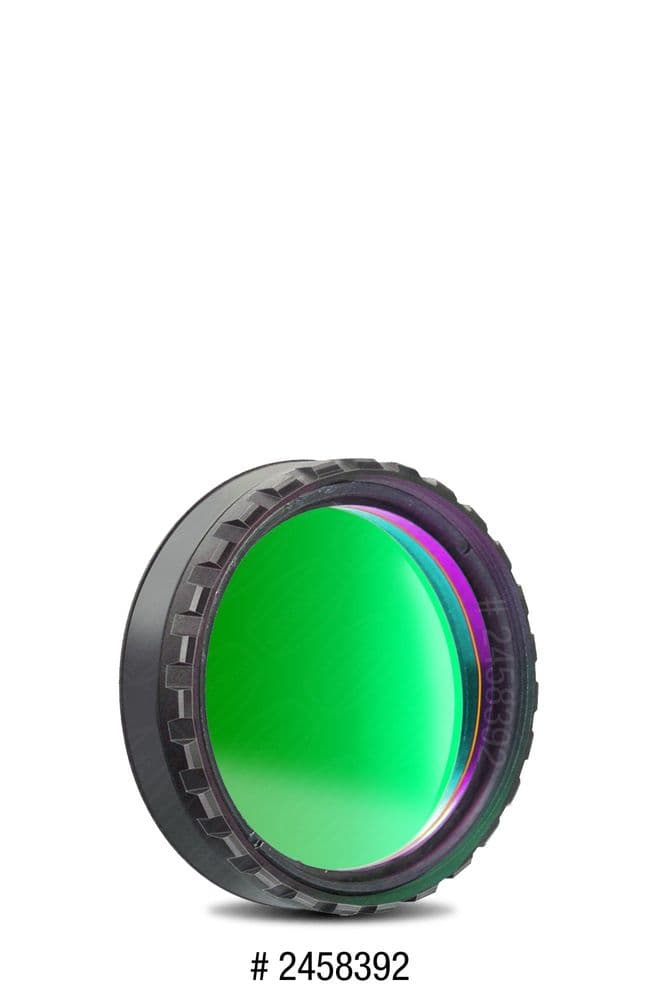

Baader Solar Continuum Filter 1¼" (double stacked)

Product code: 2458392
in stock
[value]
£149.00
£124.17 (ex. VAT)

PREORDER : 2 weeks

You will earn 149 loyalty points with this purchase

Product information

  • 1¼" Double Stacked Baader Solar Continuum Filter. 8nm / CWL 540nm.
  • Includes 1x AstroSolar® Photo Film OD 3.8 20x29 cm. The filter includes two Baader Solar Continuum Filters in a single filter cell which have been stacked for even higher contrast.
  • Enhances the contrast and reduces the effect of atmospheric turbulence.
  • This filter must be used in conjunction with a Baader Herschel Wedge or Baader AstroSolar® Safety Film 5.0 (not included) for solar observations otherwise equipment damage may occur. The included Baader AstroSolar® Photo Film 3.8 must not be used for visual observation but only for solar photography (e.g. lucky imaging).

Baader Narrowband Filers in sizes 1¼", 2", 50.4mm and 50x50mm

Double Stacked Solar Continuum Filter - For Visual and Photographic Observations of the Sun

Ensures highest contrast in the photosphere of the sun. The filter works as a monochrometer - suppressing the effects of the atmospheric turbulence and results in images that are significantly sharper. Owners of SCTs and refractors will benefit as red and blue wavelengths are completely excluded, with the transmission area peaking at 535nm where telescope optics are sharpest and free from chromatic aberrations.

IMPORTANT INFORMATION FOR SOLAR OBSERVING

The Solar Continuum Filter may be used for purely VISUAL observation ONLY in conjunction with the Baader Herschel Prism or with the Baader AstroSolar® Safety Film 5.0. The supplied AstroSolar® Photo Film 3.8 is for photographic use only and MUST NOT be used for visual observations.

The combination of AstroSolar® Photo Film 3.8 and Solar Continuum filter is used exclusively for photography of the sun at high magnifications. This combination is highly apt to capture the finest solar surface detail and granulation at extremely high magnification while enabling ultra-short exposure (measured in milliseconds) in order to freeze atmospheric turbulence.

MANUFACTURERBaader Planetarium
SKU (#)2458392
EAN CODE4047825009371
WEIGHT (NETTO)0.026
TRANSMISSION RANGE536 544 nm
FILTER THICKNESS (WITHOUT CELL)2 mm
HBW (HALFBANDWIDTH)8nm
CWL (CENTRAL WAVELENGTH)540 nm
AR-COATINGdielectrically coated, planeoptically polished
SPECIAL FEATURESdoube stacked
FILTER SIZE1 25 inch
FILTER USAGEContrast Enhancement, Solar
FILTER MOUNTEDMounted (classic 8mm)
TYPE OF FILTERNarrowband
SINGLE OR SET?Single Filter
FILTER SHAPEround

Product Info

PREORDER 2 weeks
GTIN 4047825009371
Brand Baader
Product Code 2458392
Delivery Weight Package
1kg
