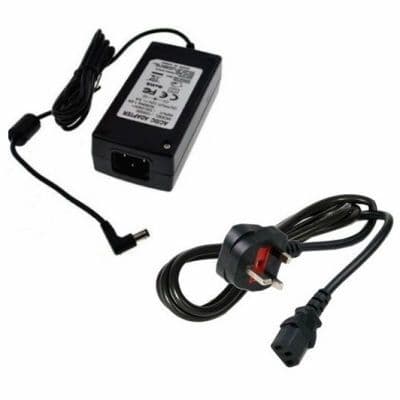

Celestron - SkyWatcher Compatible 12v 5 Amp Mains Power Supply

Product code: PSU
Out of stock
£26.00
£21.67 (ex. VAT)
Sorry, this item is out of stock. Please use our stock alert to be notified when ready.

You will earn 26 loyalty points with this purchase

Product information

This high quality 12 volt DC 5A power supply allows you to power your telescope or mount directly from any UK 240 volt mains supply. This switched mode regulated power supply is rated at 5 amps and has a UK mains plug with a 2.1mm tip positive plug suited to many SkyWatcher and Celestron telescopes and mounts. We have sold thousands of these power supplies over the years, the numbers speak for themselves - an excellent quality product at the right price.

Supplied with a heavy duty plug in mains lead with fused three pin plug which is far more durable than wall plug all in one adapters with thinner two core wires.

Low electronic noise design providing all the power you need for your intrument even at below zero temperatures

This version only works with models using the 2.1mm centre positive power socket, the lead has a convenient right angle plug

Suitable for:

  • Celestron NexStar SLT / SE ASTRO-FI & CPC
  • Celestron Advanced VX / CG5 Mounts / CGEM / CGEM-DX / CGX / CGX-L & CGE
  • SkyWatcher SupaTrak
  • SkyWatcher AZ SynScan Goto
  • SkyWatcher AZ-GTI
  • SkyWatcher Auto & SynScan Dobsonians
  • SkyWatcher Star Discovery
  • SkyWatcher EQ3 Pro / EQ5 Pro / HEQ5 Pro & EQ6 Pro / SynTrek

Not suitable for the SkyWatcher AZ EQ6 GT EQ6R PRO or EQ8 PRO

Supplied with a heavy duty plug in mains lead with fused three pin plug which is far more durable than wall plug all in one adapters with thinner two core wires.

Produced using the latest energy efficient design with 75% efficiency and full CE approval. Low electronic noise design providing all the power you need for your intrument even at below zero temperatures.

Specifications:

  • Output Voltage +12VDC
  • Output Voltage Tolerance +/- 0.6V
  • Minimum Load Current 0Amp
  • Nominal Load Current 5000mA
  • Nominal Load Power 60Watts
  • Line Regulation +/-1%
  • Load Regulation +/-5%
  • Switching Frequency 65K Hz typical
  • Hold Up Time 10m sec. min. (100VAC)
  • Turn On Delay 3 sec. max. (100VAC)
  • Weight approx. 82g
  • Operating Temperature -20 °C To +45 °C
  • Storage Temperature -20 °C To +75 °C
  • Operating Humidity 20% to 90%
  • Storage Humidity 0% to 90%
  • MTBF 50,000 hours
  • Safety UL 60950, FCC part 15, CE (EN60950/EN55022)
  • Ripple And Noise 120mVp-p
  • Efficiency 75% min. @ full load
  • Protections Short, Over voltage & Over Current
  • Over Temperature Protection Shutdown when temp exceeds 65 °C
  • Output Connection Style 2.1mm C+ve DC Plug

Please contact us if you are unsure if this unit is suitable for your equipment.

Technical specifications

Brand Celestron
Product Code PSU
