- Fits pre-drilled holes in the front and rear cells of current 9.25 Schmidt-Cassegrain and 9.25 EdgeHD Optical tubes
- Aluminum bar with orange anodizing provides a sturdy mounting platform.
- Easy to install and comes complete with all necessary hardware

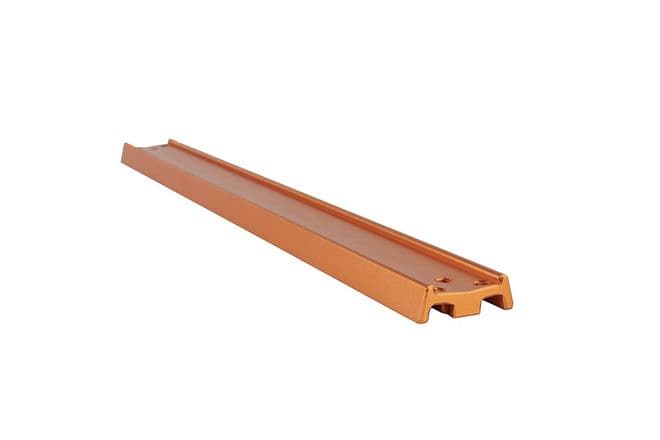

This dovetail bar kit allows you to replace the wider CGE dovetail bar found on most Celestron 9.25 Schmidt-Cassegrain and 9.25 EdgeHD optical tubes with a narrow dovetail, allowing them to be used on mounts that require the narrower CG-5 dovetail bars, such as the Advanced VX mount.
|Length:||17" (431.8mm) x 1.7" (43.18mm)|
|Weight:||13 oz (368.5 g)|
|Optical Tube Compatibility:||Current Celestron 9.25" Schmidt-Cassegrain and 9.25" EdgeHD optical tubes with the wide CGE bar|
|Mount Compatibility:||CG-5 style dovetail bars|
