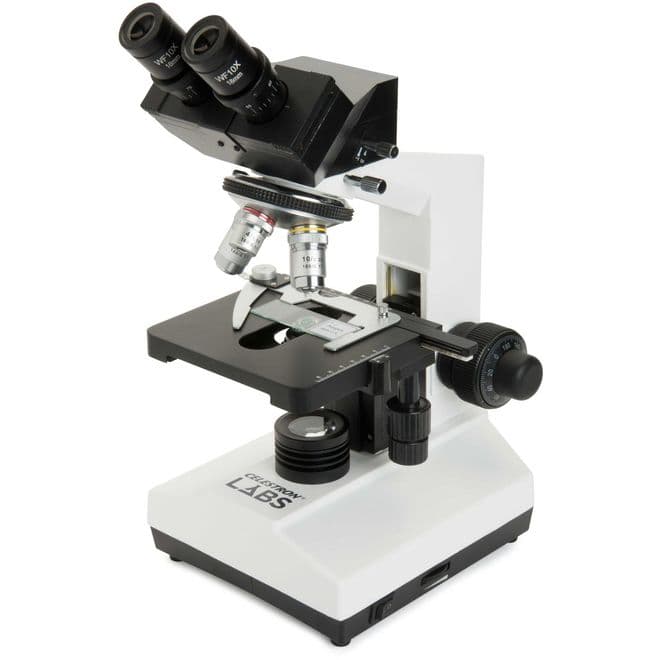

Celestron Labs CB2000C Compound Microscope
Product information
The Celestron Labs CB2000C Binocular Compound Microscope offers all the advanced features youre looking for. With 10x and 20x eyepieces and 4 included objective lenses (4x, 10x, 40x and 100x), youll achieve magnification ranging from 40x to 2000x. Improve the quality of your magnified images with the included 3 colored filters. A trinocular eyepiece tube is included, allowing for a camera to be adapted or for secondary eyepiece viewing. The 10 included prepared slides guarantee exciting discoveries right out of the box.
This microscope provides perfect illumination thanks its NA 1.25 Abbe condenser and iris diaphragm, which allow to you to control and concentrate light on your specimens. You can easily control brightness, contrast, depth of field, and evenness of illumination by adjusting the distance between the Abbe condenser and objective or by adjusting the condensers iris diaphragm, which controls the diameter of the light beam. The fully mechanical stage has knobs to control both axes for easy centering of your slides. An all-metal construction means you can rely on the CB2000C for years to come. The Trinocular adapter allows for the attachment of a camera for taking images of your specimens.
Type of Microscope | Compound Trinocular |
Head | Trinocular with 360° rotatable 45° incline and interpipilary distance adjustability |
Eyepiece(s) Magnification | (1) 10x and (1) 20x (10x with pointer) |
Eyepiece(s) Diameter | 23.2 mm (.91") |
Nosepiece | quadruple, rotational |
Objective(s) Type | Refractive |
Objective(s) Standard | DIN |
Objective(s) Magnification | (4) 4x, 10x, 40x, 100x immersion, all achromatic |
Objective(s) Thread | 4/5" x 1/36" |
Focus Type(s) | Coaxial coarse and fine focus (individual dials) |
Focus Travel (per rotation) | 0.2 mm (.0078") |
Magnification Range | 40x to 2000x (40x, 80x, 100x, 200x, 400x, 800x, 1000x and 2000x) |
Illumination Type | 44132: Halogen | 44232: LED |
Illumination Position(s) | Lower |
Illumination Adjustability Mechanism | Dial |
Power Source | AC Adapter- 100-240V |
Battery Option | 6V/0.5W |
Stage | Mechanical stage, 140 mm x 140 mm (5.5" x 5.5") |
Condenser Type | Abbe with Iris adjustment |
Condenser N.A. | 1.25 |
Stage Diaphragm | N/A |
Included Accessories | Trinocular adapter tube, 10 prepared slides, 3 color filters (blue, white opaque, green), immersion oil |
Product Info
GTIN | 50234442329 |
Brand | Celestron |
Product Code | 44132-CGL |
Delivery Weight Package
|
2kg |
