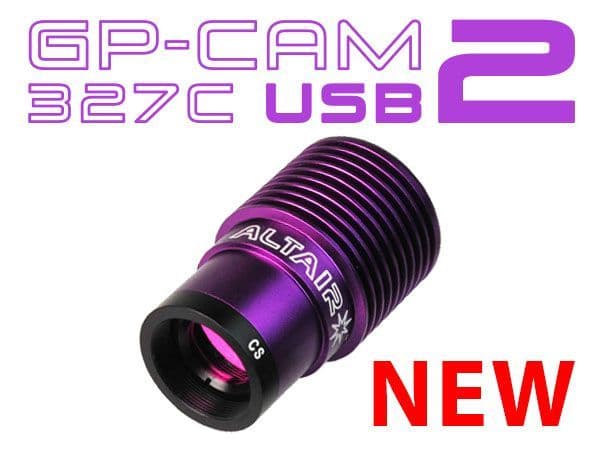

GPCAM2 327C Video Astronomy Camera

Product code: ALTAIRGP327C-BASIC
out of stock
[value]
£179.99 UK Price
£149.99 (ex. VAT) International Price

PREORDER : 2-3 weeks

PayPal Checkout
You will earn 179 loyalty points with this purchase

Product information

The GPCAM2 327C is a colour CMOS camera with extremely high sensitivity, designed for video astronomy or EAA. It replaces your telescope eyepiece and comes with AltairCapture and SharpCap PRO software which both enable live video stacking, revealing stunning details on deepsky objects, even with a modest telescope.

The GPCAM2 327C can of course be used for any astronomy application including proper deep-sky imaging and high speed high resolution solar system imaging of the moon, planets. It is an especially good solution for capturing meteors with an all-sky camera dome. (Select optional 120 deg Meteor Lens when ordering).

The Sony IMX327 STARVIS Back Side Illuminated (BSI) sensor is extremely sensitive, the successor to the IMX290 being significantly more sensitive in low light situations. The GPCAM327C camera provides amateur astronomers access to this new Sony sensor at a very reasonable price.

The camera is powered by a USB2.0 cable, enabling the longer cable lengths, and USB2.0 compatibility preferred for EAA (Electronically Assisted Astronomy). The USB connector is heavy duty and will not pull out easily like cheaper cameras, maintaining better contact as your GOTO telescope traverses the sky.

GPCAM 327C Colour Camera Specifications:
  • Sony IMX327 Colour STARVIS Back Side Illuminated (BSI) Sensor.
  • 2.1 megapixels, 1920x1080 pixels.
  • Sensor 1/2.8" format.
  • Sensor 5.6x3.1mm physical size, 6.46mm diagonal.
  • Sensor pixels 2.9 micron.
  • Exposure duration: 0.105ms to 1000secs
  • USB2.0, Max. 18fps at full resolution.
  • RIO supported.
  • Binning 2x2 3x3 4x4 all supported on-camera, both in Additive (for EAA) or Averaging (for Deepsky Imaging) modes. 2x2 Binning gives approx. 50% improvement in signal to noise ratio.
  • Live stacking supported in AltairCapture and SharpCap PRO software.
Approx. Max frame rates (assuming computer Bus and Hard Drive operating at full bandwidth):
1920x1080 18fps
1024x768 25fps
640x480 40fps
(For 12bit mode, assume approx. 50% of above rates)

Included in box:
  • Camera body with high-strength USB2.0 connector.
  • UV IR Cut optical window with anti-reflection coatings (400 to 700nm transmission).
  • 1.25" Astro-nosepiece with with female 1.25" filter thread filter thread. (Remove to reveal C-Thread).
  • Silicon dust plug for darkframes.
  • Plastic dust cap.
  • 1.5m ST4 guide cable.
  • 2m High-speed USB2.0 A male to B male cable.
Included Software: Note: This camera does not come with software in the box. To operate the camera, you will need to download the latest camera software at www.altairastro.help (opens new window).
  • Free AltairCapture software & ASCOM drivers downloaded at www.altairastro.help. (NOTE: An Internet connection is therefore required to setup the camera for the first time as the software is not included in the box).
  • Free SharpCap PRO 1 year license, Software downloaded (not included in box). Download instructions here: https://www.sharpcap.co.uk/altair
Other software supported: Camera form factor:
CNC machined aluminium body with air cooling fins connected directly to the sensor.
Sensor surface distance from flat end of 20mm 1.25 Astro adaptor: 37.58 mm.
Sensor surface distance from flat end of C/CS threaded adaptor 12.5 mm.
Weight 70g.

Warranty: 2 years against defects in manufacture, RTB return to base.

Recommended PC specification & Operating system: Windows 8 & 10 Compatible. Windows 10 64 bit operating system and at least an i3 processor with 4GB RAM is recommended for best performance. An 8GB i5 PC is preferable or upwards for large live stacks.

Product Info

EAN 0747742378140
GTIN 0747742378140
MPN ALTAIRGP327C-BASIC
MPN ALTAIRGP327C-BASIC
PREORDER 2-3 weeks
Brand Altair
Product Code ALTAIRGP327C-BASIC
Delivery Weight Package
0.5kg
