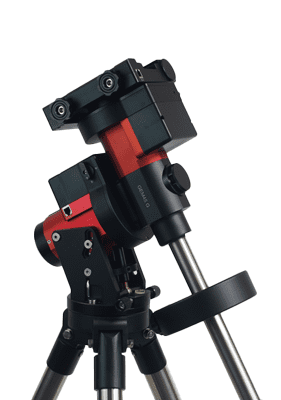

iOptron GEM45 GEQ GoTo Mount with iGuider, LiteRoc Tripod & Case

Innovative ideas applied to a time tested design, the iOptron® GEM45 next generation German equatorial mounts. A sharp looking CNC body is the first indicator the GEM45 is a top quality mount in both form and function.

Utilizing experiences gained during development of our CEM series, we were able to remove unnecessary bulk giving the GEM45 an incredible 2.5 payload to mount weight ratio. This compact 17.5lb mount can precisely GOTO an object and track with up to 45lbs of gear onboard. With its integrated electronic polar scope (iPolarTM), polar alignment is a snap, even when the pole star is obscured. Large levers on the quick-lock drive engagement system make it easy to snap its drive gears into place even when wearing gloves. There is little chance of your cables getting snagged with the GEM45's internal advanced cable management system. A 6" dual saddle accommodates Losmandy and Vixen style dovetail plates. GEM45 mounts utilize reliable stepper motor drive systems with our low power consumption technology. Our new LiteRoc 1.75" tripod delivers rock solid stability in a lighter, more compact package. A 212,000+ object library with star identification, GPS, Wi-Fi (requires optional iStarFi adapter) are a few of the desirable features standard on a GEM45 mount.

This GEM45G mount comes with an on board guiding camera, iGuiderTM. The iGuider consists of a 30mm f4 lens with a 1/3 inch, 3.75um pixel imaging sensor conveniently imbedded in the mount dovetail saddle. The iPolar, iGuider and an extra USB port on the dovetail saddle are all connected through one USB connection.

Features

• German equatorial mount with innovative features
• Idea for both visual observation and astrophotography
• Maximum payload of 45 lbs (20 kg) with the mount weight of only 17.5 lbs (7.9 kg)
• Easy to use quick-lock gear clutches
• Integrated iPolarTM electronic polar finder
• Low periodic error (< ±7.5 arc seconds)
• Permanent periodic error correction (PPEC)
• Precision stepper motor for precise GOTO and accurate tracking
• Go2Nova® hand controller with Advanced GOTONOVA® GOTO Technology and built-in heater
• Onboard iGuiderTM autoguiding system
• 32-channel Global Positioning System (GPS)
• USB communication port
• Integrated ST-4 autoguiding port
• Cable management system
• 6" Losmandy-D & Vixen dual dovetail saddle
• All metal, CNC machined with red/black anodized
• Optional WiFi for mount control via SmartPhone/Tablet/Computer
• All new LiteRoc 1.75" tripod with improved stability and leg locks
• Hard case for mount head
• NEW iOptron subsidized TheSky Imaging Edition

Shipping Contents

• iOptron® GEM45 mount (#7620A, with black gear switches)
• Go2Nova® Hand Controller
• One 11 lbs (5 kg) counterweight
• Stainless steel counterweight shaft
• Internal iPolar electronic polar scope
• GEM45 GPS module
• AC adapter (100V-240V)
• 2X coiled control Cable (6P6C RJ11 to RJ11, straight wired)
• USB cable
• Hard case
• LiteRoc 1.75" tripod with improved stability and leg locks
• Quick Start Guide
