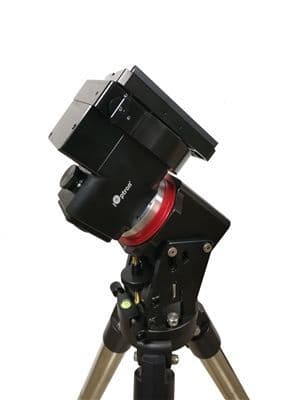

iOptron HEM44 EC Hybrid Harmonic Drive Equatorial GoTo Mount with iPolar

Product code: H444A
in stock
[value]
£3,395.00 UK Price
£2,829.17 (ex. VAT) International Price
PayPal Checkout
You will earn 3395 loyalty points with this purchase

Product information


Freedom from cumbersome counterweights and shaft is here!

Introducing the HEM44 and the HEM44EC, iOptron’s latest revolutionary hybrid strain wave gear mounts. These light weight, compact, medium payload titans will deliver an astronomy experience like never before. Imagine a mount head weighing in at 13.65lbs with a payload capability 44lbs, without needing a cumbersome counterweight or shaft. Applying iOptron’s multi-decade experience creating precision mounts, the HEM44 brings this vision to reality.

Utilizing state of the art strain wave gear technology for the RA movement in tandem with backlash-free DEC worm/belt drive design, the HEM44s deliver unparalleled weight to payload efficiency. Its black anodized all metal CNC machined body is not only appealing to the eye, it’s a rugged platform that will perform at the highest level for many years to come. Unique features such as an electronic friction break and power down memory allow the mount safely stop and resume a GoTo slew or continue tracking even after an abrupt power loss (No need to realign and start from the beginning).

A HEM44 mount can be controlled by a computer, either via ASCOM/Commander for a Windows PC or a third party INDI driver for a MacOS software; a SmartPhone/Tablet via iOptron Commander Lite or an App like SkySafari; or a Raspberry Pi device via INDI driver.

The HEM44EC features a high precision RA axis encoder that delivers incredible tracking accuracy, enough that many will choose to image “sans” guiding.

HEM44 mounts with low latitude range (0~50 degree) are available via special order.

Learn more about HEM44 mount

Features

  • Advanced strain wave drive technology
  • Payload capacity of 20 kg (44 lbs) with the mount weight of 6.2 kg (13.65 lbs)
  • CNC machined
  • Unique friction brake to safely stop movement during a planned or unplanned power interruption
  • 270 second gear period
  • High precision encoder with realtime PEC (RPEC)
  • Go2Nova® hand controller with ~212,000 object database
  • iPolar electronic polar scope for easy and accurate polar alignment
  • Cable management system, no hanging exterior cables to moving parts
  • Dual saddle (Vixen and Losmandy-D styles)
  • Built in zero position search and locator
  • Power down position and location memory
  • Integrated ST-4 autoguiding port
  • Built-in Wi-Fi (via hand controller)
  • USB port for firmware upgrade and computer control
  • Aluminum carrying case
  • Two year warranty
Mount Hybrid Strain Wave Equatorial Mount
RA gear system StrainWave
DEC gear system Backlash-free worm/belt system
RA reduction ratio 640:1
Payload w/o CW * 44 lbs (20 kg)
Mount weight 13lbs (5.9kg) w/o dovetail saddle
13.65lbs (6.2kg) with dovetail saddle
Payload/Mount weight 3.23
Payload with CW * 55 lbs (25 kg)
Period 270 second
Drive motor Stepper motor
Structure Material All metal, CNC machined
Exterior finish Anodized black
High precision encoder Yes (RA)
PEC Yes, Realtime PEC
Latitude adjustment range 15º ~ 65º
Azimuth adjustment range ± 6º
Polar Scope iPolar electronic polar scope
Level indicator Level bubble
Control system GOTONOVA/Commander
Hand Controller Go2Nova® 8409 with ~212,000 objects database
Tracking Automatic
Maximum slew speed 4.5º/sec
Power consumption 0.6A(Tracking), 1.2A(GOTO)
Power DC12V-5A (5.5/2.5mm DC plug)
AC adapter 100V ~ 240V (included, indoor use only)
Cable No moving/wrapping
Cable management 2X12V (4A max.), 1X USB2.0
Power off brake Electronic friction brake
Power-down memory Yes
Wi-Fi Built-in
Communication port Yes (Wi-Fi and USB, via HC)
Autoguide port Yes (ST-4 compatible)
Firmware upgrade Yes
Dovetail saddle Vixen & Losmandy
Tripod Optional
Counterweight Shaft SS Φ20X200mm, M16 thread (Optional)
Counterweight 10 lbs (4.5kg)(Optional)
Operation temperature -20ºC ~ 40ºC (hand controller -10ºC ~ 40ºC)
Warranty Two year limited

* 200mm, with payload center of gravity to the RA rotation axis. Or an OTA size of ~220mm.

Manual:
Quick Start Guide
Instruction Manual
iPolar Operation Manual

Firmware and Software:
Download Latest Firmware
iPolar Software

HEM44 Computer Control:
Install ASCOM Driver and Commander
iOptron Commander Lite

Product Info

GTIN 0700646366903
Make iOptron
Brand iOptron
Product Code H444A
Delivery Weight Package
20kg
