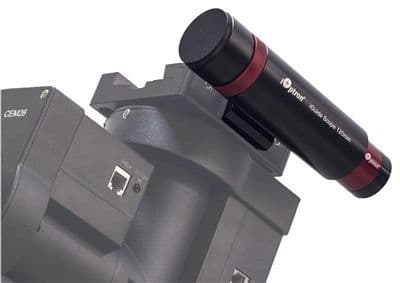

iOptron iGuider Autoguider System

iOptron iGuider^TM compact autoguider system consists of portable mini guiding scope with a diameter of 30mm and focal length 120mm (Part # 3361) and a iGuider 1 Camera (Part # 3362). The resolution of the autoguider is 6.44 arc sec/pixel, especially suitable for guiding with short to medium focal length telescopes. With dielectric AR-coated achromatic lenses, iGuider Scope is sharp in imaging and ensures high quality guiding. iGuider autoguider can mate with iOptron CEM26/GEM28/CEM40/GEM45* mounts seamlessly without any adapter. It also comes with a standard 19mm wide finder scope dovetail, readily fits with telescopes that have finder scope slot.

* For CEM40/GEM45 6" V/D dovetail saddle with 2XM3 mounting holes.

iGuider autoguiding system (#3360) includes an iGuider Scope (#3361) and an iGuider 1 Camera (#3362).

iGuide Scope:
Weight: 200 g (including iGuide Scope and iGuider camera)
Aperture: 30mm
Focal length: 120mm
Focal ratio: F/4
Mounting plate: 13mm dovetail bar

iGuider 1 Camera：
Pixel size： 3.75μm
Pixel array: 1280*960
Mega pixel: 1.2 MP
Chip size： 1/3”
Resolution: 6.44 arcsec/pixel (coupled with iGuide Scope)
Guiding method：Support Pulse Guiding (ASCOM Guiding), not support ST-4 Guiding
Dimensions: 1.25” telescope eyepiece adapter

Manual: iGuider Operation Manual ASCOM driver: iGuider ASCOM Driver
