LUNT LS40THa/B500 H-alpha solar telescope

Product code: 0551145
in stock
[value]
£885.00
£737.50 (ex. VAT)
PayPal Checkout
You will earn 885 loyalty points with this purchase

Product information

40mm solar telescope for easy and affordable starting into observation of prominences & more

  • Special telescope for observing the sun
  • Absolutely safe, no danger to the eyes
  • Shows prominences & more details on the sun
  • Easy to use, well suited for beginners
  • For visual sun observation
  • Bandwidth less than 0.7 Angstrom
  • Small B500 blocking-filter

Solar observation in H-Alpha: prominences, filaments, flares ... the most spectacular way to see the Sun - easy and affordable with the LS40THa.


Complete H-alpha solar telescope with 40mm aperture, <0.7 Angstrom bandwidth, B500 blocking-filter, and Helical focuser.

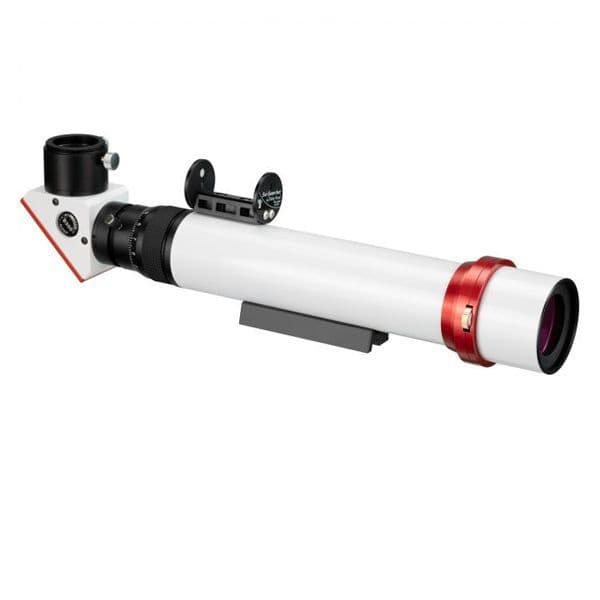

The LS40THa/B500 is a complete telescope for observing the sun in H-alpha, with 40mm aperture (no central obstruction) and 400mm focal length. The H-alpha wavelength is the most impressive way to observe the sun, showing protuberances at the sun's edge, filaments and flares on the surface, and much more. An Etalon with mechanical tilt-tuning provides <0.7 Angstrom bandwidth.
Fine adjustment is achieved with a 1.25 inch Helical focuser. Blocking-filter is the B500, this is good for visual observation of the sun. The star diagonal in which the blocking filter is installed, is equipped as standard for 1.25 inch eyepiece connection.


The easy handling makes this telescope ideal for starting H-Alpha solar observation. Due to its compact dimensions it is also a good travel telescope for the experienced solar observers.

The LS40THa telescopes are available with choice of B500, B600 or B1200 blocking filters. The larger blocking filters provide less edge obstruction and a larger field of view for visual observation and photography. Please note that these telescopes have only a very small back focus and therefore photography is difficult. We recommend special astro cameras for photography, which have a very short distance to the sensor, such as the BRESSER Full HD camera item number 4959050.


FEATURES
  • Aperture: 40mm (no central obstruction, 2-lens refractor)
  • Focal length: 400mm
  • Bandwidth: <0.7 Angstrom
  • Tuning: mechanical tilt-tuning
  • Blocking filter: B500 with 1.25 inch connection
  • Focuser: Helical focuser
  • Dovetail bar at standard GP-level
  • 1/4-20 tapped base (standard thread for photo-tripods)
  • Sol-Searcher included
  • Weight: 1.2kg
  • Length: 41cm

Included:
  • LS40THa Solar Telescope
  • B500 blocking filter in star-diagonal housing
  • 1.25 inch Helical focuser
  • Dovetail bar (GP level)
  • Sol-Searcher
  • Instruction manual

Technical Data

FIELD OF APPLICATION
Field of applicationSolar observation
OPTICAL SPECIFICATIONS
Mirror/Lens diam.40 mm
Focal length400 mm
Aperture ratio10
Angular resolution3.45 arc seconds
Full width at half maximum (Angström), less then0.7
GENERAL TECHNICAL DATA
Eyepiece Barrel Diameter31.7 mm
Mount TypeOptics without Mount
DIMENSIONS & WEIGHTS
Total length41 cm
Total width8 cm
Total height11.5 cm

Product Info

EAN 4007922069371
Brand Lunt
Product Code 0551145
Delivery Weight Package
5kg
