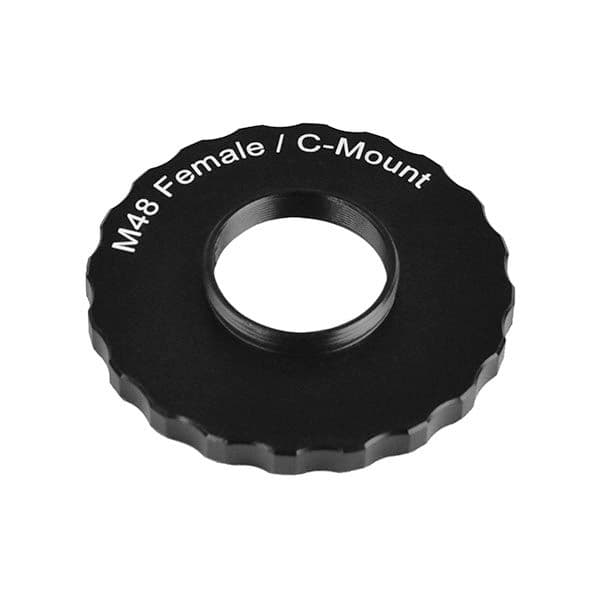

M48 to C-Mount Adaptor Converter for GPCAM

Product code: M48-5-CMOUNT
£15.00
£12.50 (ex. VAT)
You will earn 15 loyalty points with this purchase

Product information

This adaptor lets you can use your GPCAM with Altair and Starwave Reducers with M48 rear thread.

The M48 Female Filter-Thread to C-Mount Male Adaptor let's you attach your GPCAM to various M48 accessories such as field flatteners with M48 rear male thread.

The converter increases the optical path length by 5mm, which is necessary to provide an extremely rigid connection when converting between threads, without misalignment. It has an M48 Female Filter-Thread on one side, and a C/CS Mount Male thread on the other side.

"Easy Grip" scalloped outer ring makes the ring easier to tighten or loosen to reduce sag between camera and telescope. It makes it easy to attach and detach without getting the adaptor "stuck" and it acts as a flange upon which to align the components accurately, without flex. Tip: A VERY small amount of wax on the threads will make the product easier to remove after extended use.

How to use it with GPCAM and Altair Magnetic Filter Holder:

It adds 5mm to the light path so be sure to subtract that value from your existing back-focus requirement (usually 55mm total to sensor). So with a GPCAM and a flattener with 55mm back focus requiremet and M48 rear male thread, you would subtract 5mm from 55mm and to use the GPCAM you would subtract another 12.5mm (for the CS/C mount flange to the camera sensor). Therefore the total remainder is 55-5-12.5 = 37.5 to make up with spacers or an Altair Magnetic Filter holder.

Here's the adaptors you need:

Use Scenario: Without Magnetic Filter holder: With Magnetic Filter holder:
For use with 0.8x reducer with 55mm optimum spacing to sensor, and M48 rear thread, you need following Product Codes:  M48-30-EXT
and
M48-75-EXT
CASS2KIT-M48 (correct filter holder)
and
M48-75-EXT

Product Info

gtin 0747742378553
MPN M48-5-CMOUNT
EAN 0747742378553
Brand Altair
Product Code M48-5-CMOUNT
Delivery Weight Package
0.1kg
