Pegasus ULTIMATE PowerBox V2 USB Control Hub

Product code: PEG-UPBv2
£525.00
£437.50 (ex. VAT)
You will earn 525 loyalty points with this purchase

Product information

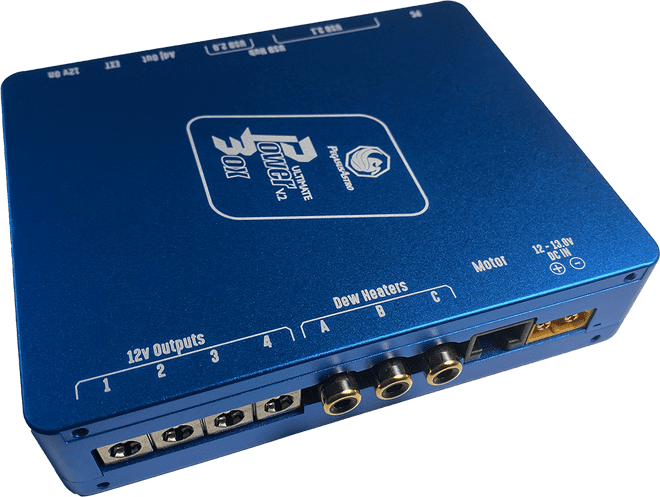

The Ultimate Powerbox v2 (UPBv2 in short) is the successor of the renowned Ultimate Powerbox. You asked for more features, we kept our promise:

A USB3.1 Hub was added so you can switch on/off each USB port remotely, more power outputs added, more dew heater ports added, new stepper controller that can drive any stepper motor in the astronomy market as well as an expansion ports for future devices that will communicate with the UPBv2 Controller!

If you are tired of carrying multiple power packs and dealing with a mess of power and data cables, our Ultimate Powerbox v2, a sophisticated power control unit, is the Ultimate solution. Our idea is an enclosure that makes a sufficient number of amperes available.

No cables disturb the movements of the mount and the instrument, only the main power cord and one USB data cord is attached to the Ultimate Powerbox from which branch off the other cables powering all devices.

Ultimate Powerbox v2 quick glance:

4 x 12V Smart Outputs,
3 x PWM duty cycle channels for Dew Heaters / Flatpanel / Fans
USB3.1 SuperSpeed, 5 Gbit/s Industrial Grade Powered Hub
Includes 4 x USB3.1 and 2 x USB2 available ports (6 USB ports in total)
Stepper Motor Controller (Can drive nearly any stepper motor in the astro -market Unipolar or Bipolar)
Variable / Software Configured 3-12V / Regulated Output of 3Amps
12V / Always ON Output for your mini PC
Environmental & Power readings
In a compact size with plenty of features!

We strongly believe that if you own a remote observatory or you do advanced imaging you are going to love this device!

Power and Data Cable management:
Solid Input Socket:
A large and solid DC input socket ensures that power cable is always secured in place. Socket is selected to provide all the power you need without voltage drops. A DC power cable is included in the package which supports 20A of total power. The controller has been designed to support up to 20 Amps of total input current.

* Please note that Ultimate Powerbox v2 is not a powerbank. It requires an external power source (battery or PSU) to receive its power.
4 x 12V DC Power outlets for your equipment
Four powerful Smart Mosfet transistors provide electric juice to your precious equipment. Sophisticated short circuit and overload per port protections cut the power and report the incident into our software. Every Mosfet is capable to provide up to 7Amps of current.

Metal quality output sockets ensure that will provide all the juice you need and can secure your extension power cables in place.

Built in Power Sensors:
A precise voltmeter and an ampmeter (can measure up to 30A) measure and display in real time your power input. If the input is more than 14.5V the power is instantly cut off to protect your equipment.

Individual Current Meter per 12V port and Dew Heaters:
Every 12V output and every Dew Heater Channel has an internal and independent digital current meter. You can view each port power consumption in the software.

Stand Alone Software:
Our modern standalone software has a neat dark skin! Control all Ultimate Powerbox v2 features from this software. Receive metrics, View and zoom into graphs, name your outputs, tune every setting of your Ultimate Powerbox v2 quickly and easily.

Industrial 6 port powered USB3.1 SuperSpeed Hub:
An industrial grade USB3.1 Hub controller ensures that this USB hub will work flawlessly from temperatures of -40°C to +80°C. A neat feature is that each USB port can be switched ON/OFF individually by the software. A device was stuck and you had to replug the socket in the middle of a cold night? No problem! Just locate the port, click the ON /OFF switch in our software and you recycle the USB port . Simple as that!

At the back of the UPBv2:
4 x USB 3.1 Super Speed ports
2 x USB 2 High Speed ports
Each USB port provides up to 2.5Amps. All USB ports include an electronic short circuit and overload electronic protection.

Embedded Stepper Motor Controller:
A stepper motor controller will precisely move your focuser. The controller drives a Pegasus Motor or any other stepper motor in the market (Unipolar or Bipolar) e.g. Rigel, Robofocus, Moonlight Motor.

Make sure you have the correct cable for your motor. Every manufacturer uses its own pinout. Contact us if you have questions about your motor.

Supported Stepper Motors:
Pegasus MFK Required RJ45 to RJ45 common straight network cable
Robofocus Requires cable RJ45 to DB9
Check Documentation tab for pinout
Moonlite Requires cable RJ45 to DB9 (Robofocus Compliant Pinout)
Check Documentation tab for pinout
Lakeside Requires cable RJ45 to DB9 (Robofocus Compliant Pinout)
Check Documentation tab for pinout
Starlight HSM 20,30,35 Required custom pinout RJ45 to RJ45 cable.
Check Documentation tab for pinout
Starlight MSM 20,30,35 Required RJ12 to RJ12 straight network cable
Check Documentation tab for pinout
Rigel nStep Required RJ45 to RJ12 custom network cable
Check Documentation tab for pinout
Backlash compensation is already implemented in the firmware and can be enabled, tuned and disabled from the software. A fully ASCOM6 focuser driver is available.

Three channel duty cycle PWM outputs:
Three Pulse width modulation (PWM) outlets are capable to provide power to your thirsty Dew Heaters / Flatpanels or Telescope Fans. Eliminate the moisture that is fuzzing your equipment and destroying your clear nights. These outlets can be remotely tuned from your laptop using the supplied software.

A Variable & Voltage Regulated Output:
One regulated output that can provide up to 3Amps of current is available. You can tune the output from 3 Volt to 12Volt and save this setting in controllers memory. Every time UPBv2 boots the port will be tuned to the stored voltage setting,

Always ON 12V Output:
One unregulated 12V output can provide up to 8Amps. So, In addition with the Smart 4 x 12V outputs you have one more to connect additional equipment. This 12V output port stays always ON!

Expansion Port (EXT):
An RJ12 expansion port is available for future devices. Expansion Port allows the connectivity of current and future Pegasus Astro Products. Plugged devices can be controlled from UPB software (ASCOM /INDI / Standalone)

Auto Adjustment of PWM (Dew Outputs):
Firmware can auto adjust the PWM Outputs by consulting the environmental sensor Dew Point reading. Just click Auto and leave to Ultimate Powerbox v2 decide if it is time to switch on your dew heaters.

Note: You can select which Dew Heater output is controller by the Auto Dew function.

ASCOM 6.4 fully supported:
Ultimate powerbox fully supports ASCOM6. In combination with our main program which acts as a server you can use our latest ASCOM 6.4 supplied drivers to:

Control Stepper Motor (ASCOM Focuser):
Pass environmental settings to supported software (e.g Sequence Generator Pro / MaximDL )  (ASCOM ObservingConditions)
Switch ON or OFF all 12V outputs. (ASCOM Switches)

External bracket support:
We provide an optional pair of brackets to grab the Ultimate Powerbox device onto a Losmandy 3 or Vixen plate. Both brackets can be screwed on the side of the controller and grab on your telescope.

Losmandy plate
Installation guide for Pair of UPBv2 Dovetail Brackets
Led Indications for power and failure states
Led can blink in patterns to warn you regarding important power issues (e.g over or under voltage). Moreover light can be turned off using the software. Our led is very dim but in case you dont like it on you can switch it off via the software.

Power Cables are included in the package:
Four (4) power cable of DC 2.1mm to 2.1mm male (1m) are included in the package. Cables are thick enough to support up to 6Amps of current.

External Environmental Sensor:
External temperature & relative humidity sensor is included in the package. Know exactly the environment conditions in your location.  Temperature, humidity and dew point measurements are displayed in the software.


Zoomable and Exportable Graphs for Power and Environment values:
Software logs all voltage, current, temperature and relative humidity readings. All these plots are zoomable and easily exportable in PNG image & CSV text format. Keep a full record of your night conditions.

Timer to shutdown outputs:
Choose the time and start timer to shutdown output ports when you schedule it.

Memory persistence outputs on startup:
You can easily define which output should turn ON during startup. The setting is stored in systems EEPROM memory. A neat feature in case of a power failure.

USB3.1 Connectivity:
Controller is always connected to the USB Hub (7th internal USB port). No extra cable needed. Just connect the USB Hub to your laptop and you are ready to go.

Reverse Polarity Protection:
Ultimate Powerbox has been design with a reverse voltage polarity protection. It will definitely save your night if you accidentally connect the main power supply in reverse polarity!

Watchdog:
A hardware watchdog resets the device if for any reason there is no response from the controller for two seconds. A neat feature in the unlikely event of a controller freeze when you have a remote observatory and you need to be certain that everything works as expected.

Upgradable Firmware:
Device is firmware upgradable to support future features and bug fixes.

Warranty:
Device and included sensor is covered by two years warranty.

Compact Size and Lightweight:
A blue anodised aluminium compact sized box enclose the controller board. Size is 12cm x 10cm x 3cm (4.72 inch x 4.06 inch x 1.2 inch). Weight is 400 grams (14.1 ounces).

In the box:
Ultimate Powerbox v2 enclosure
Temperature / Humidity Sensor
4 x Power DC 2.1 to 2.1 male cable (1m)
DC Cable (2m) to Cigarette Lighter Adapter (10A fused)
USB3 Cable Type B (1.8m)

Optional Powerbox accessories, ordered separately:
Small Factor PC Base Plate for UPBv2 (PEG-PLATE-UPBv2)
Power Supply Unit (12V / 10A) XT60 P (PEG-PSU-21-UK)
DSLR Battery Couplers (various - please check this category in our shop)
Pair of Black Aluminium Dovetail Brackets for UPBv2 (PEG-BRACK-UPB)
Power Cable for Skywatcher EQ8 Mount (PEG-CABL-EQ8)
Power Cable for Skywatcher EQ6R / AZ-EQ  (PEG-CABL-EQ6R)
Small Factor PC Base Plate for UPBv2 (PEG-PLATE-UPBv2) Anodised aluminium base plate to securely mount your MiniPC (e.g Intel NUC) on top of the UPBv2.

Pegasus Ultimate Powerbox Documentation:

Please visit Download page for latest Pegasus Ultimate Powerbox software

Pegasus Motor Cable Pinout information:

Technical Specifications:
Supply Voltage: 12V-14V DC (Reverse Polarity Protected)
Power Input Connector XT60 Female
Connectivity USB3 Type B USB Connector
4 x 12 Outputs Maximum Current 6.5A each.
2.1mm Center Positive
Sense/ Ampmeter in each port
Software: ON/OFF
3 Channel x 12 PWM Outputs Maximum Current 6.5A each,
Sense/ Ampmeter in each port
Blue Coloured RCA Connector,
Pulse Width Modulated (Suitable for Dew Heaters / Fans / Flatpanel)
Software: Duty Cycle % / OFF
1 x Variable Output Adjustable via software. 3-12V / 3Amps
1 x Always ON 12V Output 12V passthrough / Always ON / 8 Amps
Stock Sensor Input / EXT 0-100% humidity readings with 2-5% accuracy
-40 to 80°C temperature readings ±0.5°C accuracy
Ampmeter Measures 0 30A
Voltmeter Measures 5 15V
Superspeed (USB3.1) Industrial 6 port powered Hub Industrial Grade: Temperature range -40°C to +80°C
4 x SuperSpeed (USB3.1) ports (backwards compatible with USB2)
2 x High Speed (USB2)  ports
USB Ports can be switched ON/OFF on demand via software (data + power)
Each USB port can deliver up to 2.2Amps
Stepper Motor Controller Unipolar and Bipolar Stepper motors, max 2.4 Amps (1.2 Amps per phase) RJ45 socket
Dimensions Size is 12cm x 10cm x 3cm (4.72 inch x 4.06 inch x 1.2 inch). Weight is 400 grams (14.1 ounces).

Pegasus Ultimate Powerbox F.A.Q:
Q: What kind of power supply do I need?
A:  We suggest to buy a good linear 12V-13.8V / 10-20A branded power supply. Cheap units cause voltage drops on high load and ripple effect. This will cause issues and artefacts to your precious CCD Camera. You can also use a Lead Acid battery (12V-13.8V).

Q: What type of cable do I need to use for input?
A: If you are going to make a custom input cable please note that you need at least a AWG 17 cable. Make also sure that you do not exceed 2 meters (6.5 feet) to to reduce voltage drops.

Q: I would like to use the Ultimate Powerbox into my remote observatory. What if the device freezes for some reason?
A: We have good news for you. The device has a hardware watchdog and resets itself if the controller is not responsive after 2 seconds.

Q: My observatory is in a very cold place. Is there any issue with the electronics of the device?
A: All electronic components were selected to support temperature ranges from -40 to +80 °C. Moreover USB3.1 Hub controller is an industrial grade model which fully complies with this temperature range.

Q: I have a new feature request. Is it possible to implement it in the software / firmware.
A: Sure, we are here to listen our customers. Please contact us and tell us about your idea!

Q: What if I accidentally short-circuit an output?
A: Ultimate Powerbox has an internal protection for all outputs. In less that 5 milisecs it will cut off the power of this output and a warning message will be appeared at the software screen.

Q: What if I accidentally reverse input polarity?
A: Ultimate Powerbox has an input reverse polarity protection. Device will not power on and of course will not allow any voltage to leak to outputs.

Q: What if I short-circuit a USB Hub port?
A: Device has a USB short-circuit / overcurrent protection per port. It will instantly isolate/disable the selected USB port. Just remove the USB device and replug it to bring it to life.

Q: I have a USB device which requires more power than a normal USB port.
A: Each USB port provides 2.5Amps of current. You will be fine.

If you use an Intel M3/5 Stick which has a USB-C socket you will need a USB A -> USB-C fast charging cable that can provide 3Amps. Normal USB-C cables have an internal resistor which limits current to 2.2Amps and leads to PC Stick shutdown.
Q: In the middle of the night humidity rises up. What can I do for my optics?
A: Enable auto-dew functionality. Device firmware will adjust the power of both Dew Heater outputs consulting the humidity / dew point levels that environmental sensor reports.

Q: Can I upgrade the firmware?
A: Of course, device has been designed to support firmware upgrade for future features or bug fixes. Software will prompt you for a firmware upgrade, if there is a need.

Q: Why dont you place a mini PC inside the Ultimate Powerbox?
A: We really dont support this idea. Why to buy something and pay noticeable amount of money for a mini PC that will be obsolete (in its specification) after 6-12 months? We suggest you to just get a compute stick, plug it in the 6th USB hub port to supply it with enough power juice and you have your tiny PC up and running! If you dont like it after some time, buy another one with higher specs and lower price for sure! Check the user shots for an example of this approach!

Q: Does it support INDI
A: Yes 100%. There are two implementations. Indigo and native INDILib. Both support Windows/OSX/Linux.

http://www.indigo-astronomy.org/downloads.html
https://indilib.org/devices/auxiliary/pegasus-ultimate-power-box.html
