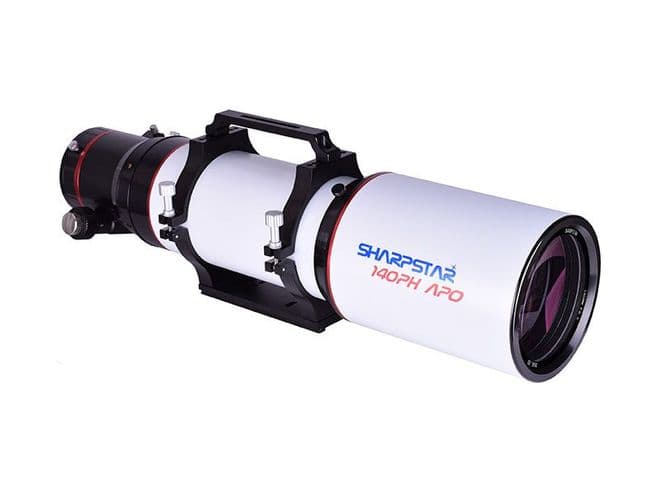

SharpStar 140PH f/6.5 Triplet APO (Dual ED) Telescope

Product code: SHARPSTAR-140PHAPO
in stock
£4,289.00 UK Price
£3,574.17 (ex. VAT) International Price
PayPal Checkout
You will earn 4289 loyalty points with this purchase

Product information

Sharpstar 140PH, a large-aperture APO astrograph, the very first in Sharpstar APO-series, finally comes to the market. It features pioneering double ED glass and triplet air-spaced lens structure. The focal ratio is properly designed of f/6.5 and its focal length is 910mm.

Most stock triplet APO lenses are regularly equipped solely with an ED glass aiming to reduce the achromatic aberration, whereas two of the 140PH lens set are ED glass, considerably enhancing the aberration control performance, offering a solid foundation for advanced visual observation and astrophotograph.

Sharpstar 140PH is equipped with a retractable dew shield and is wrapped with quality aluminum ally cover. The dedicated 4" large-size focuser allows both coarse and fine adjustment. Sharpstar 140PH also comes with a pair of streamline tube rings, a wide dovetail plate and a ergonomically-crafted handle. All the apparatus and accessories are packed and safely protected in an elegant aluminum chest.

The Sharpstar 140PH can be applied in many full-frame sky-imaging situations with the help of a full-frame flattener and reducer. The 3" 0.73× reducer can effectively lower the original focal ratio to f/4.8, catering to many special astrophographic needs, such as shorter exposure time, larger field of view and advance image quality.


AL-140PH Parameters

Aperture size


Focal length


Focal ratio


Objective lens

triplet air-spaced APO(including two ED glass)

Limiting magnitude



0.83 arc-seconds

Total Length of Tube


Main Tube Outer Diameter


Net Weight


Gross Weight

11.7kg (Including tube ring, dovetail plate and handle)


A Pair of specialized tube ring, a universal dovetail and a handle

Product Info

Brand Sharpstar
Delivery Weight Package
