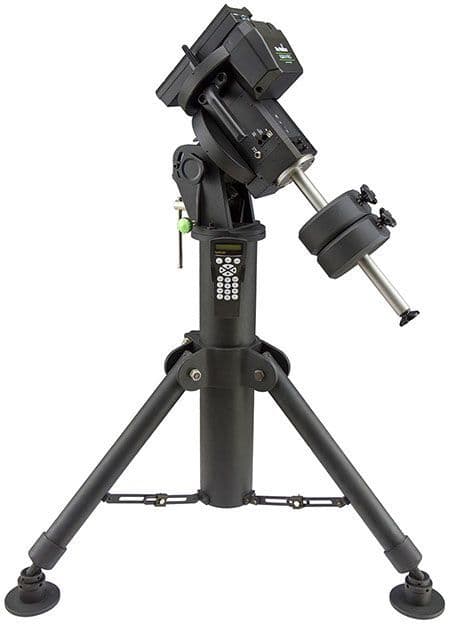

Sky-Watcher EQ8-R Mount 2019 with Tripod

Product code: 20323-20293
in stock
£4,399.00 UK Price
£3,665.83 (ex. VAT) International Price
PayPal Checkout
You will earn 4399 loyalty points with this purchase

Product information


A solid workhorse at a bargain price!
The NEW Sky-Watcher EQ8-R Pro is an evolutionary progression of the popular EQ8 Pro.

An extra heavy-duty, observatory class German Equatorial Mount with a payload capacity of up to 50kg.

Quiet in operation, the EQ8-R is supplied with the Synscan Go-To handset that can automatically find and track over 42,900 celestial objects from its extensive computer database.

Available either complete with pier tripod, or as the mount head only, to install onto a static pier.
Please contact Altair Astro for a combo price with the famous Altair SkyShed 8" Observatory Pier.

Two 10kg counterweights and the Synscan computerised handset are supplied with both options.

The mount is also compatible with the optional Synscan Wi-Fi adaptor and Synscan Pro Apps which can control the mount wirelessly.

Improvements over the previous EQ8 model include:

Cable management system for reduced tangling.
Improved Connectivity.
Improved installation position of motors for improved balance.
Improved clutch mechanism provides more holding strength.
Improved dovetail groove knob for added comfort and increased locking power.
Belt drive on the DEC axes for quiet slewing.
Note: Freedom-Find encoders are not present on the EQ8-R

Permanent Periodic Error Correction

The EQ8 mount is equipped with an index on its R.A. worm thus the motor controller can keep tracking the current position of the worm. After a proper PEC training routine, in which the training data is stored in the motor controller permanently, a user can start the periodic error correction (PEC) at any time to improve the tracking performance for short focal length astrophotography. A training process is not required in the next observing session (assuming that the polar alignment is always accurate), thus this is a Permanent Period Error Correction (PPEC). A user can train the mount with manual guiding or auto-guiding. For detailed instructions,

Batch Exposures Function

The EQ8 mount is equipped with a SNAP port which can control the shutter release of a camera. Working with the SynScan hand controls Camera Control function, a user can take batch exposures when doing astrophotography. Up to 8 groups of Exposure-time & Frames combinations can be set on the SynScan hand controller. For detailed information, refer to the SynScan hand controls instruction manual.

Auto-Home Function

The EQ8 mount is equipped with two home position sensors. Working with the SynScan hand controller, the mount can be placed to the same home position after turning on the power. For detailed information, refer to the SynScan hand controls instruction manual.

Product Info

MPN 20323-20293
MPN 20323-20293
Brand SkyWatcher
Product Code 20323-20293
Delivery Weight Package
