The SkyTech CLS (City Light Suppression) filter is designed to improve the visibility of various deepsky objects by blocking light pollution, while allowing light from deepsky objects through.
SkyTech CLS filters are suitable for unmodified Canon DSLRs. The CLS has a wider pass-band than a UHC filter, so it gives a more natural colour rendition than a UHC filter. CLS is therefore best for mild to moderate light pollution on city outskirts or suburban locations.
Compatible with all APS-C sized Canon EOS cameras. Not for full frame cameras. Do not use with Canon EFS lenses because the rear elements can strike the filter. This is not an issue with most Sigma and 3rd party EF-S lenses and of course telescopes.
Why choose a SkyTech DSLR Clip-Filter?
- It can be inserted or removed in seconds.
- All lens functions (focus, preview screen, image stabilization) work as usual.
- If you have a telescope with short space between reducer/flattener and camera and filter wheel, or a camera lens, a clip filter is the solution.
- It protects your sensor from dust build-up during long exposures when the mirror is up.
Check out the AstroBackyard SkyTech CLS filter video review here:
How this filter works: Artificial lighting such as mercury vapour lamps, both high & low pressure sodium vapour lights and unwanted natural light caused by neutral oxygen emission in our atmosphere (skyglow) are almost completely suppressed by the SkyTech CLS filter.
The filter selectively allows light from deepsky objects through, with high transmission of ionised oxygen O-III (496nm & 500nm), Hydrogen Beta / N-beta (486nm), N-II(654nm and 658nm), H-alpha(656nm) and S-II(672nm).
By selectively blocking light pollution and transmitting these desirable wavelengths, the contrast and detail of deepsky objects is greatly enhanced.

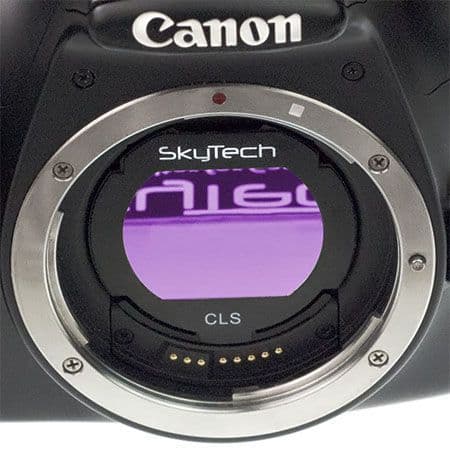

SkyTech EOS Clip filters fit the following Canon EOS APS-C cameras (not EFS):
7D MkII, 7D, 20D, 20Da, 30D, 40D, 50D, 60D, 60Da, 70D, 77D, 80D, 90D, 300D, 350D, 400D, 450D, 550D, 600D, 650D, 700D, 750D, 760D, 800D, 1000D, 1100D, 1200D, 1300D, 2000D, 4000D, 100D, 200D
Precision laser-cut housing.
Schott glass substrate material with precision polish.
Glass thickness 1.0 mm.
Surface Quality: 60/40 (Refer to MIL-O-13830)
Fine-optically polished to ensure accurate 1/4 wavefront and < 30 sec parallelism over both surfaces
95% transmission of main nebula emission lines (i.e. Ha 656nm, OIII 496nm & 500nm, SII 672nm and H-beta 486nm).
0.1% transmission of off-band, specifically the major emission lines of artificial light pollution (i.e. Na 589nm, Hg 435nm and 578nm).
Dichroic Filter Coatings:
Multi-layer anti-reflection coating (AR Coat).
Special high homogeneity coating process with electron-beam gun evaporation and Ion-assisted deposition coating technology for durability and resistance to scratching, as well as stability on CWL (central wavelength) no deviation with temperature change.
