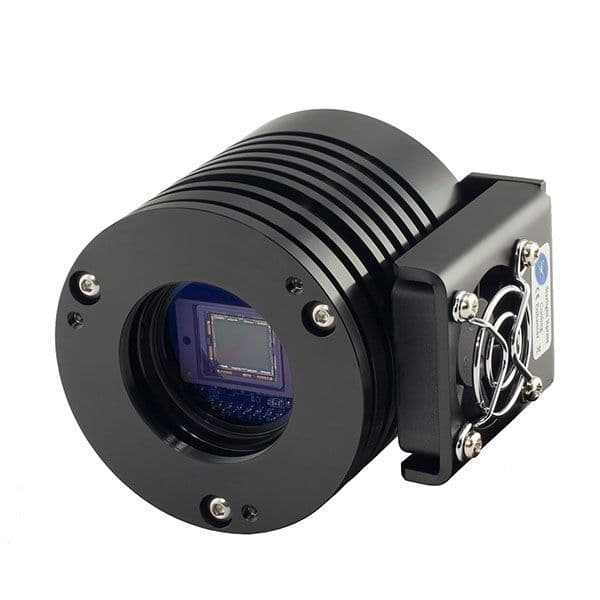

Starlight Xpress Trius SX-814 PRO Mono or Colour CCD Camera
Product code:
SX-814-TRIUS-MONO
in stock
[value]
£2,268.00 UK Price
£1,890.00 (ex. VAT) International Price
You will earn 2268 loyalty points with this purchase
Product information
New, updated camera from Starlight Xpress
The TRIUS range of cameras was introduced in 2014. These were the first cameras on the market to incorporate a powered USB 2.0 hub in the rear of the camera to enable the user to connect their USB filter wheel and guide camera directly to the camera rather than multiple cables back to the computer - simplicity and convenience.
The new TRIUS PRO series follows on from that success. We have redesigned the electronics to give even lower read-noise figures and faster downloads. With the Sony CCD cameras, we are now getting read-noise figures that are better than CMOS cameras (when used at unity gain), along with 16bit data and significantly better dark-noise figure thanks to the impressive cooling. Dark frames really are a thing of the past, making calibration frames optional rather than compulsory, giving you more time to capture data and process your images.
The Trius PRO-814 is a higher resolution version of the very popular Trius PRO 694 camera. It has a similarly high QE and low thermal noise, but offers 9.19 megapixels of resolution. Each pixel is 3.69 x 3.69 uM in size. This very high resolution makes the 814 particularly well suited to the super-fast short focus 'scopes and 'Hyperstar' systems that are now widely in use. The new 'Trius' version adds a triple USB hub and Argon filled CCD chamber.
Please choose Mono or Colour in the option menu before ordering.
Image format 3380 x 2712 pixels in a 12.5mm x 10mm array
Pixel size 3.69 x 3.69 uM
QE Peak (Yellow light) approx. 77%, H-alpha approx. 60%
Well depth >12k
Read Noise 3e
Image download time 3.5 seconds in 1 x 1 binning mode
Cooling 2 stage high efficiency Peltier cooler giving approx. -45C temperature reduction
USB Triple port powered USB hub built-in
CCD Chamber Dry Argon filled CCD chamber
Power consumption 1.5 amps max. at 12v DC (universal AC supply provided)
The TRIUS range of cameras was introduced in 2014. These were the first cameras on the market to incorporate a powered USB 2.0 hub in the rear of the camera to enable the user to connect their USB filter wheel and guide camera directly to the camera rather than multiple cables back to the computer - simplicity and convenience.
The new TRIUS PRO series follows on from that success. We have redesigned the electronics to give even lower read-noise figures and faster downloads. With the Sony CCD cameras, we are now getting read-noise figures that are better than CMOS cameras (when used at unity gain), along with 16bit data and significantly better dark-noise figure thanks to the impressive cooling. Dark frames really are a thing of the past, making calibration frames optional rather than compulsory, giving you more time to capture data and process your images.
The Trius PRO-814 is a higher resolution version of the very popular Trius PRO 694 camera. It has a similarly high QE and low thermal noise, but offers 9.19 megapixels of resolution. Each pixel is 3.69 x 3.69 uM in size. This very high resolution makes the 814 particularly well suited to the super-fast short focus 'scopes and 'Hyperstar' systems that are now widely in use. The new 'Trius' version adds a triple USB hub and Argon filled CCD chamber.
Please choose Mono or Colour in the option menu before ordering.
Image format 3380 x 2712 pixels in a 12.5mm x 10mm array
Pixel size 3.69 x 3.69 uM
QE Peak (Yellow light) approx. 77%, H-alpha approx. 60%
Well depth >12k
Read Noise 3e
Image download time 3.5 seconds in 1 x 1 binning mode
Cooling 2 stage high efficiency Peltier cooler giving approx. -45C temperature reduction
USB Triple port powered USB hub built-in
CCD Chamber Dry Argon filled CCD chamber
Power consumption 1.5 amps max. at 12v DC (universal AC supply provided)
Product Info
| MPN | SX-814-TRIUS-MONO |
| MPN | SX-814-TRIUS-MONO |
| Brand | Starlight Xpress |
| Product Code | SX-814-TRIUS-MONO |
|
Delivery Weight Package
|
5kg |
