TS-Optics CCD Adapter for Canon EOS lenses to M48 - 10 mm length
Connection at lens side: Canon EF lens mount (female)
Connection at camera side: M48x0.75 thread (male) - 2" filter thread
Only 10 mm short - fits to all popular astro cameras
Working distance from the M48 thread is 34 mm (taking into account the flange focal distance of the Canon lenses of von 44 mm)
Not suitable for STM lenses, as they need electrical power supply for focusing
Connection adapter to the M48 thread for optimal camera adaption and ultra-short filter changers can be found in the accessories section.

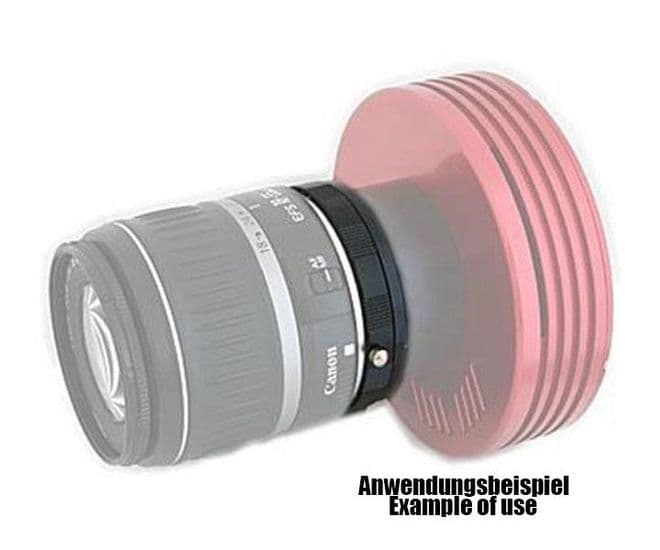

TS-Optics short M48 Adapter for CCD cameras and CMOS cameras to Canon EOS lensesUse your high-quality EOS camera lenses and, for example, take photographs of large areas of the sky. In this case, the CCD camera replaces the SLR.
The adapter is suitable for astro cameras up to 32 mm working distance. All common ZWO, Atik, SBIG, QHY or Moravian cameras will fit. An adaption to T2 is also no problem (see recommended accessories).
The most important connection adapters to the EOS lens adapter:
Reduction to T2 via TSM48-T2, TSM48-T2L and TSM48i-T2a (differnt lengths)
Extension to M54 via TSM54a-M48i (optical path 1.5 mm)
Extension to M68 via M68-M48i (no optical path)
Filter changer for unmounted filters TSFEK50 (optical path 12 mm - with 2x M48Abstimmring1). With this, you can even create L-RGB images or use nebula filters between camera and lens.
