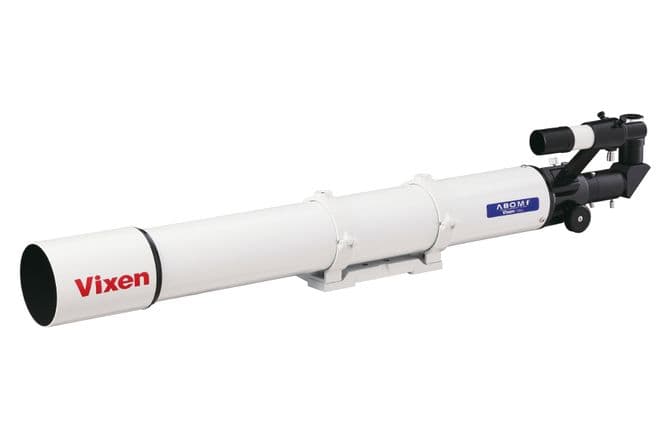

Vixen A80Mf optical Tube

Product code: X000271
in stock
£244.00 UK Price
£203.33 (ex. VAT) International Price
PayPal Checkout
You will earn 244 loyalty points with this purchase

Product information

  • Ideal beginner’s model for demanding entry-level astronomers
  • 80 mm achromat with 910 mm focal length
  • Ideal for observing the moon and planets
  • Built-in T2 thread for the camera connection
  • Dimensions: 90 mm x 860 mm
  • Weight: 3.3 kg

The A80Mf refractor is an ideal entry-level model for beginner astronomers who value high-quality optics. Thanks to Vixen’s quality controls, the 80 mm lenses are produced to an outstanding quality. The refractor comes with two Plössl eyepieces (6.3 mm and 20 mm) and a 90° star diagonal. The A80Mf is ideal for exploring the moon and the brighter planets.
On moonless nights you can observe the Andromeda Galaxy or Orion’s Nebula.
The 6x24 viewfinder makes locating celestial objects quick and easy.
We recommend using this product with the optional Porta II mount.
The mount is lightweight, stable and easy to use.


  • Objective lenses: 80 mm achromat, coated
  • Focal length: 910 mm (f11.4)
  • Resolution and limiting magnitude: 1.45 arc seconds; 11.3
  • Light-gathering power: 131x
  • Dimensions and weight: (OD) 90 mm x (L) 860 mm; 3.3kg
  • Viewfinder telescope: 6x24 mm
  • Adapter and connections: 42 mm for T-thread; 31.7 mm connection
  • Included accessories: 31.7 mm star diagonal, PL20mm & PL6.3mm eyepieces
  • Photography: Primary focus and eyepiece projection

  • 31.7 mm star diagonal
  • PL20mm & PL6.3mm eyepieces
  • Tube clamps
  • Dovetail adapter
  • 6x24 mm viewfinder telescope

Technical Data

Field of application
  • Lunar observation
  • Lunar photography
  • Planetary observation
  • Deep Sky Observation
Focus Group Beginners
Product Family Refractor telescope
Optical design Achromatic Refractor
Maximum recommended magnification 160
Mirror/Lens diam. 80 mm
Focal length 910 mm
Aperture ratio 11.4
Angular resolution 1.45 arc seconds
Visual limiting magnitude (approx., mag) 11.3
Type of coating coated

Product Info

EAN 4007922066424
Brand Vixen
Product Code X000271
Delivery Weight Package
