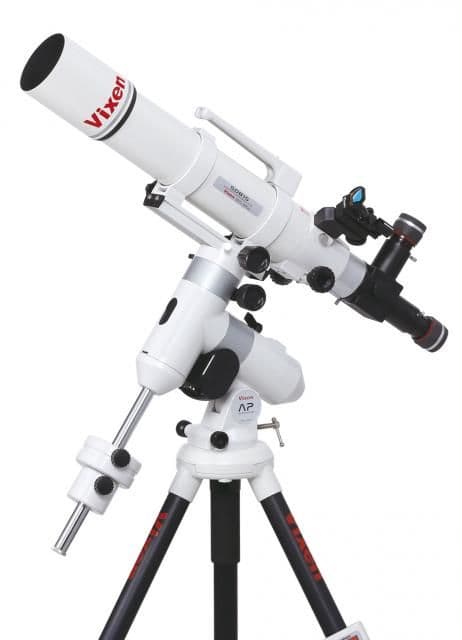

Vixen AP-SD81S II-SM Telescope set

Product code: X000067
in stock
£2,565.00 UK Price
£2,137.50 (ex. VAT) International Price
PayPal Checkout
You will earn 2565 loyalty points with this purchase

Product information

  • Complete telescope set with mount, tripod and eyepieces
  • Ultra-compact and stable tripod
  • Ideal for travel
  • Slip clutch for easy adjustment without clamping
  • Lightweight and transportable, ideal for travelling
  • STAR BOOK ONE motor controller
  • SD lenses produce pure-colour and high-contrast image
  • 81 mm lenses and 625 mm focal length, f7.7
  • Total weight: 13.5 kg

Complete telescope set with AP mount, APP-TL130 tripod, eyepieces and SD 81S refractor telescope

The ADVANCED POLARIS mount is perfect for both beginners and advanced observers who require a lightweight travel mount.
Functions of AP mount
Stylish design and intuitive controls

The AP mount features an ultra-smooth finish without any projecting parts. Simply place your telescope on the mount and move it to the desired celestial object without having to loosen any clamps! The mount requires four AA batteries, which are inserted inside the AP mount. This prevents unnecessary cable clutter and reduces the risk of pulling the cables or knocking the mount over in the dark.

Quick polar alignment and adjustment
The slip clutches allow you to adjust the telescope to your target object easily - no more searching for adjustment clamps in the dark! An optional polar meter is available, which enables you to locate the celestial pole when it is hidden by trees or buildings.
Optional polar finder scope available

The innovative polar finder scope provides a new way to polar align your telescope. Simply align the stars in the crosshair reticle with the same stars in the night sky. Polar alignment is achieved using 3 reference stars. The polar finder is illuminated to facilitate orientation and switches off automatically after 3 minutes to save battery power.

Power supply

The RA and DEC motor modules are powered by four AA alkaline, Ni-MH or Ni-CD batteries. The RA motor module has a USB Micro-B port for an external power supply. A USB power pack or car charging cable can be used for longer observation sessions.

Ultra-compact tripod

The newly developed APP-TL130 tripod provides portability and stability for astronomical observations. Measuring just 60 cm when retracted, it is ideal for on-the-go use. The tripod can be extended to a height of 130 cm. The ends of the tripod legs have a retractable rubber cover that protects the floor against scratches.

STAR BOOK ONE controller

The STAR BOOK ONE is a multifunctional and intuitive controller that tracks in the RA and DC axis with a range of different speeds. The tracking options are designed for time lapse cameras at a wide range of speeds, including sidereal, lunar and solar rates. The controller also offers many useful functions such as backlash compensation, autoguider port, PEC and a built-in red LED light.  The STAR BOOK ONE controller is designed for the AP-SM mount and is an integral part of the RA motor module.

SD81S optical lens barrel

The apochromatic refractors from Vixen feature an optical Super Extra-Low Dispersion SD glass in the objective lens. The SD glass produces a clear and high-contrast image free from false colours.

This gives the observer a colour-neutral, sharp and very high-contrast image.

The SD 81 has 81 mm lenses and a 625 mm focal lengthWeighing just 3.6 kg, it is also very portable

and is suitable for use on smaller mounts.

The large focuser allows you to attach heavy cameras without the telescope tilting.

The telescope also comes with a folding mirror for making observations in unfavourable conditions,

as well as a T2 thread for connecting a DSLR camera.


  • Complete telescope set with mount, tripod and eyepieces
  • 81 mm lenses and 625 mm focal length, f7.7
  • Resolution: 1.43
  • Limiting magnitude: 11.3
  • Light-gathering power: 134x
  • Ultra-compact and stable tripod
  • Lightweight and portable
  • STAR BOOK ONE motor controller
  • Slip clutch for easy adjustment
  • Great for travelling

Delivery content

  • SD81S telescope
  • AP-SM mount
  • APP TL 130 tripod
  • 2 eyepieces
  • Folding mirror, carry handle
  • 2 counterweights (1.0 kg and 1.9 kg)

Technical Data

Field of application
  • Deep Sky Observation
  • Deep Sky Photography
  • Lunar observation
  • Lunar photography
  • Planetary observation
  • Planetary photography
Focus Group
  • Beginners
  • Advanced Amateurs
  • Visual enthusiasts
Product Family Refractor telescope
Optical design Apochomatic Refractor
Maximum recommended magnification 160
ED glass
Mirror/Lens diam. 81 mm
Focal length 625 mm
Aperture ratio 7.7
Visual limiting magnitude (approx., mag) 11.3
Type of coating Fully multi-coated
Colour of coating green
Power supply1 1.5V Batteries
Batteries needed2 2x AA (Mignon), 1.5V
Mount type Equatorial
Material tripod3
  • Aluminium
  • Stainless Steel
Colour silver/white
Dust protection caps Dust protection caps for front lens and eyepiece holder

Product Info

Brand Vixen
Product Code X000067
Delivery Weight Package
