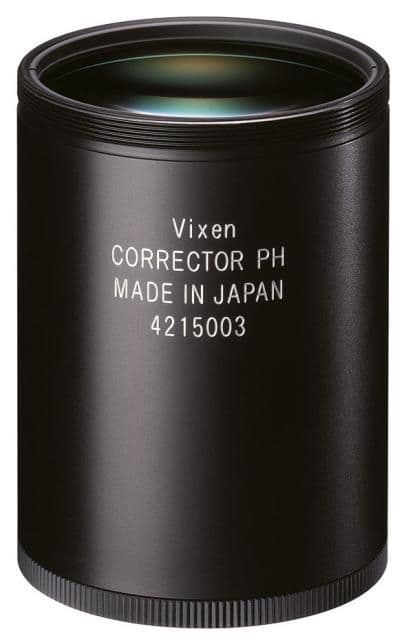

Vixen Coma Corrector PH for R200SS

Product code: X000150
in stock
£529.30
£441.08 (ex. VAT)

PREORDER : 2 weeks

You will earn 529 loyalty points with this purchase

Product information

  • 0.95x coma corrector for Newton reflector telescopes
  • Designed for full-frame DSLR cameras
  • 99.9% light transmission per lens thanks to AS coating
  • Wynne-type corrector, 3 elements in 3 groups
  • Absolute colour purity and sharp stars to the edge of the image
  • Reduces the focal length of the R200SS to 760 mm 1:3.8
  • Weight: 175 g

The Vixen corrector PH is a 3-element Wynne corrector for demanding applications.
The optical design consists of 3 lenses in 3 groups. The corrector provides excellent correction of system-induced coma of parabolic mirrors and the resulting spherical aberration.
The corrected field has a diameter of 44 mm, making it suitable for the 24x36 mm format (full-frame DSLR/CCD cameras). This guarantees razor-shape images across the entire field.
The lens surfaces are coated with a cutting-edge 99.9% anti-reflective AS coating, which is also used for Vixen’s flagship VSD100F3.8.

Make your Vixen R200SS reflector telescope into the perfect astrograph!

FEATURES
  • Premium corrector for the R 200SS
  • 3 lens systems in 3 groups, guarantees absolute colour purity and sharp stars to the edge of the field of view
  • Image illumination up to 44 mm for full-frame images
  • Reduces the focal length of the R 200SS from 800 mm to 760 mm 1:3.8
  • Also suitable for visual observations with an eyepiece adapter
  • Weight: 175 g

DELIVERY CONTENT

  • Coma corrector
  • Dust caps on front and back

Technical Data

OPTICAL SPECIFICATIONS
Magnification 0.95
GENERAL TECHNICAL DATA
Colour black
Material Aluminium
DIMENSIONS & WEIGHTS
Net weight (without access.) 175 g
Net Weight total (incl. accessories) 175 g

Product Info

PREORDER 2 weeks
Brand Vixen
Product Code X000150
Delivery Weight Package
0.5kg
