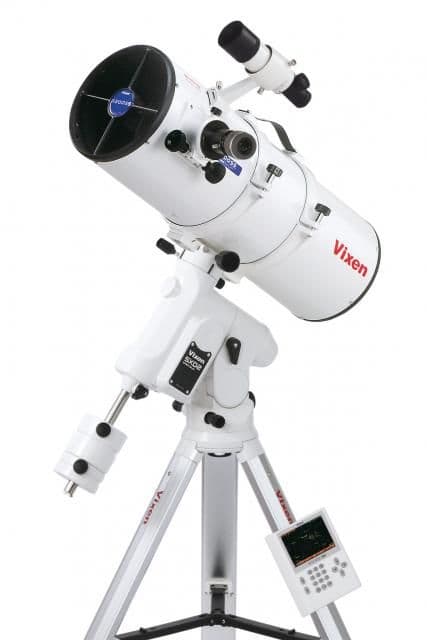

Vixen SXD2-R200SS-S-PFL Telescope Complete Set

Product code: X000009
in stock
[value]
£4,195.00
£3,495.83 (ex. VAT)

PREORDER : 2 weeks

PayPal Checkout
You will earn 4195 loyalty points with this purchase

Product information

  • Optimized 200 mm photo Newtonian telescope (F4)
  • Short exposure times thanks to f4 aperture
  • High-quality, stable SXD2 mount
  • Fully-automatic object location
  • Starbook Ten computer controller
  • Built-in autoguider input
  • More than 270,000 preinstalled celestial objects
  • Weight: 27.9 kg

SXD2 mount with R200SS reflector telescope.
The SXD2 mount comes with the new STARBOOK TEN controller and the PFL polar viewfinder, which allows you to configure the mount quickly and easily via reference stars.
The R200ss was optimized for photography and allows very short exposure times. The telescope set also offers outstanding visual performance and produces sharp images without chromatic aberration. The SXD2 mount comes with the new STARBOOK TEN controller and the PFL-II polar viewfinder, which allows you to configure the mount quickly and easily via reference stars. The mount can be operated fully automatically and finds celestial objects automatically.

The SXD 2 mount in detail
With a combination of the best features from the Sphinx series and the all-new STAR BOOK TEN manual controller, Vixen has developed a new generation of SX mounts for demanding observers and astrophotographers.
The SXD2 mount comes with the new STAR BOOK TEN controller and can be operated manually or with a computer.
Featuring the same precision stepper motors as the top-of-the range AXD mount, the SXD2 sets a new standard for performance in the Vixen mount range. Compared with the SX mounts, the SXD2 has a quieter tracking system, and the increased precision of the motors provides better performance for the long exposure times used in astrophotography.

Precision stepper motors and micro-step motion control system
The star feature of the SXD2 is the precision stepper motors, which offer better performance and responsiveness than previous models. The micro-step motion control system has powerful yet very quiet drive characteristics that offer both fine control and quick swivel movements.

Built-in bearings
The bearings of the RA and DEC axles and the worm shafts were significantly improved in order to reduce the load on the motors. The motors are much quieter than those on previous models.

Robust RA and DEC axles
High-precision and thick steel shafts in RA and DEC axles increase the robustness of the SXD2 mount.

High-precision worm gears
High-precision processing technologies were used to rectify problems with the worm gear. The edges of both worms and worm gears are particularly smooth, which enables them to deliver very high precision.

Declination axis functions as counterweight
The sturdy motor units are located in the lower section of the declination axis to ensure that the SDX2’s centre of gravity is below the intersection of the RA and DEC axis. As a result, fewer additional counterweights are required.

The R200SS in detail
The R200SS features very fast f4 200 mm optics with a parabolic primary mirror and produces extremely sharp images with no chromatic aberration. A special layer made using state-of-the-art technology provides an optimal surface for observing and photographing deep-sky objects.
The large aperture and short size make this device ideal for astrophotography of nebulae, star clusters and comets. The use of an optional coma corrector provides a sharp image until the edges of the field of view. The focuser features a socket for 2-inch eyepieces.
The R200ss comes with 232 mm tube clamps and a dovetail bar.

Aluminium vacuum evaporation system
Vixen has developed a unique aluminium vacuum evaporation system that produces extreme precision mirror surfaces. The revolutionary Vixen system allows for controlled coating of the primary mirror for greater accuracy. This coating is used on both the VC200L and the R200SS.

FEATURES

  • Optimized 200 mm photo Newtonian telescope
  • Short exposure times thanks to f4 aperture
  • High-quality, stable SXD2 mount
  • Starbook Ten computer controller
  • Built-in autoguider input
  • High-resolution monitor with star chart program
  • More than 270,000 preinstalled celestial objects
  • 15 kg load (photographic, without counterweight)
  • Weight: 27.9 kg

WHAT’S INCLUDED
  • SXG-HAL130 tripod
  • SXD2 mount
  • Starbook Ten controller with cables
  • R200SS Photo Newtonian
  • 2x counterweights (1.9 kg and 3.7 kg)
  • 7x50 viewfinder telescope
  • Polar Axis Scope
  • SLV 20 mm eyepiece
  • SLV 5 mm eyepiece
  • Cigarette lighter connection cable

Technical Data

FIELD OF APPLICATION
Field of application
  • Deep Sky Observation
  • Deep Sky Photography
  • Lunar observation
  • Lunar photography
  • Planetary photography
  • Planetary observation
FOCUS GROUP
Focus Group
  • Advanced Amateurs
  • Visual enthusiasts
  • Specialists and Research
PRODUCT FAMILY
Product Family Reflector telescope
OPTICAL SPECIFICATIONS
Optical design Newtonian Reflector
Maximum recommended magnification 400
Primary mirror diam. 200 mm
Focal length 800 mm
Aperture ratio 4
Angular resolution 0.58 arc seconds
Visual limiting magnitude (approx., mag) 13.3
Type of coating Fully multi-coated
Finderscope 8 x 50 mm
GENERAL TECHNICAL DATA
Polefinder scope
  • 6x20
  • as standard; illuminated
  • included
Material tripod3 Aluminium
Transportability good
Colour
  • white
  • silver
Dust protection caps Dust protection caps for front lens and eyepiece holder
Mount Type German/Equatorial Mount with GoTo
DIMENSIONS & WEIGHTS
Tripod height adjustment

Product Info

PREORDER 2 weeks
EAN 4955295251056
Brand Vixen
Product Code X000009
Delivery Weight Package
30kg
